International WSPR Beacon Project

Contents:
  1. Intro
  2. WSPR Search Engines and Datbases
  3. The Desktop Setup
  4. Band and Transmit Schedule
  5. RX Commercial Antenna
  6. References
  7. WSPR Propagation

[Top][Home]
Related Pages:
  1. ZachTek WSPR Transmitter
  2. VK4PK WSPR RX Site
  3. ZackTek-Interface-App
  4. r23 WSPR Raspbery Pi
  5. My First WSPR Project - VK4PK-Whispering-Pi-v2

[Top][Home]

Intro

Grafana Beacon Dashboards:

Live Beacons:

Intl WSPR Beacon Project on Twitter

WSPR Beacon Map

Project Website on Github - https://github.com/HB9VQQ/WSPRBeacon

[Top][Home]

WSPR Search Engines and Datbases

http://wspr.rocks/

WSPRnet - the Weak Signal Propagation Reporter Network:
https://wsprnet.org/drupal/wsprnet/map

[Top][Home]

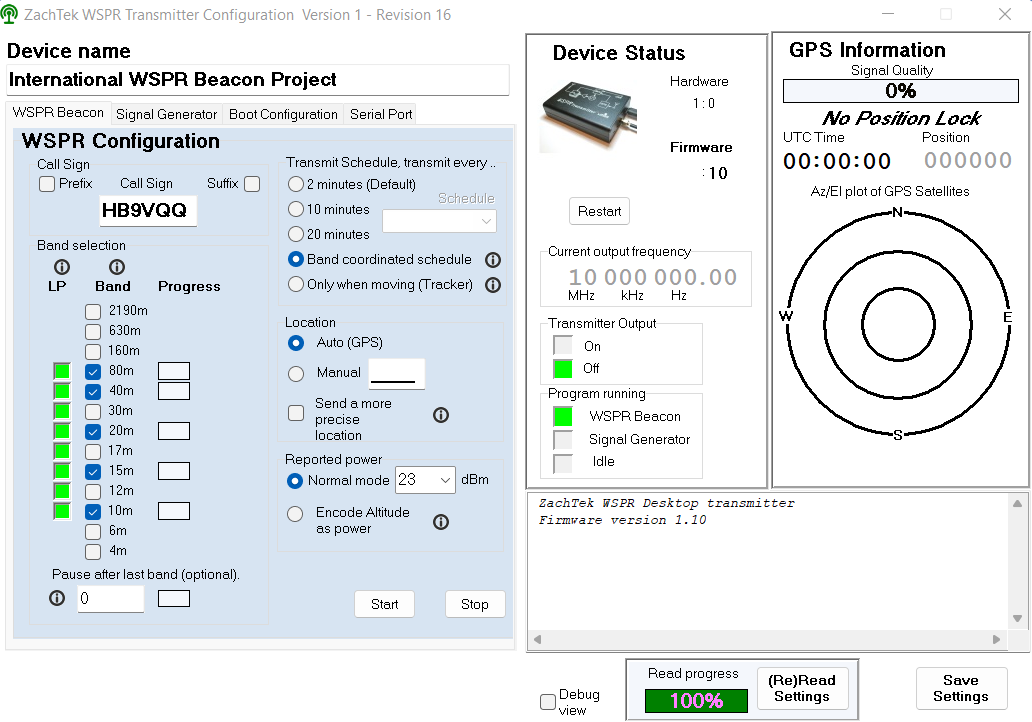

The Desktop Setup


[Top][Home]

Band and Transmit Schedule

BandDial freq (MHz)Tx freq (MHz)MinMinMin
1601.8366001.838000 - 1.83820002040
803.5686003.594000 - 3.59420022242
605.2872005.288600 - 5.28880042444
407.0386007.040000 - 7.04020062646
3010.13870010.140100 - 10.14030082848
2014.09560014.097000 - 14.097200103050
1718.10460018.106000 - 18.106200123252
1521.09460021.096000 - 21.096200143454
1224.92460024.926000 - 24.926200163656
1028.12460028.126000 - 28.126200183858
650.29300050.294400 - 50.294600
2144.488500144.489900 - 144.490100


[Top][Home]

RX Commercial Antenna

HyEndFed 5 Band Black Clamp MK3:
https://github.com/HB9VQQ/WSPRBeacon/tree/main

All antenna's are compared against the commercially manufactured HyEndFed as a standard.
https://hyendcompany.nl/antenna/multiband_8040201510m/product/detail/3/HyEndFed_5_Band_Black_Clamp_MK3#prod

This is an approximate amateur build equiliveant:
https://noji.com/hamradio/pdf-ppt/noji/Noji-Article-80-10-EF-HW.pdf

[Top][Home]

References

GM4EAU – WSPR Tools for Analysis, Mapping, TimeLine Animation, Reporting. :
https://www.gm4eau.com/home-page/wspr/additional-wspr-tools-available/

WSPR Live allows you to do analysis on the real time wspr spot data:
https://wspr.live/

[Top][Home]

WSPR Propagation

http://wspr.hb9vqq.ch/

[Top][Home]


[Top][Home]
gnl16072021 - pre published v0.9
