TB7100 to RB-STM32-DVM Setup

Setting up the TB7100 to use the RB-STM32-DVM

SK2HG's Tait TB7100 as DMR repeater:
http://www.sk2hg.se/wp/?page_id=3246

https://www.florian-wolters.de/posts/interfacing-tait-tb7100-and-mmdvm/

[Top][Home]

Tap Points


Tap Out Type specifies the type of tap-out junction. The options available depend on the Tap Out point selected.

[Top][Home]

Programming the TB7100 for interfacing to RB-STM32-DVM

Programming in RX Switch posotion:

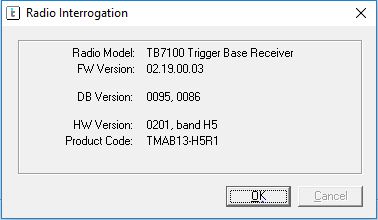

Radio Intergration

Channel Setup

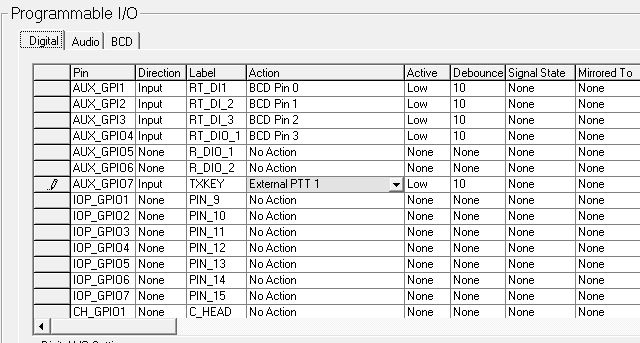

Programmable IO Digital

RX Programmable IO Audio

Programming in TX Switch posotion:

TX Radio Intergration

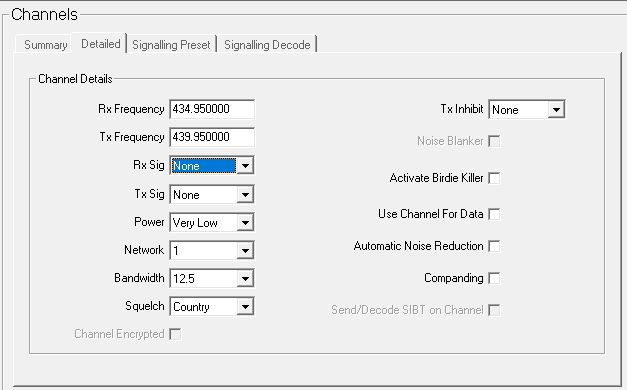

Channel Setup

TX Programmable IO Digital

TX Programmable IO Audio

[Top][Home]

F5UII's Configuration

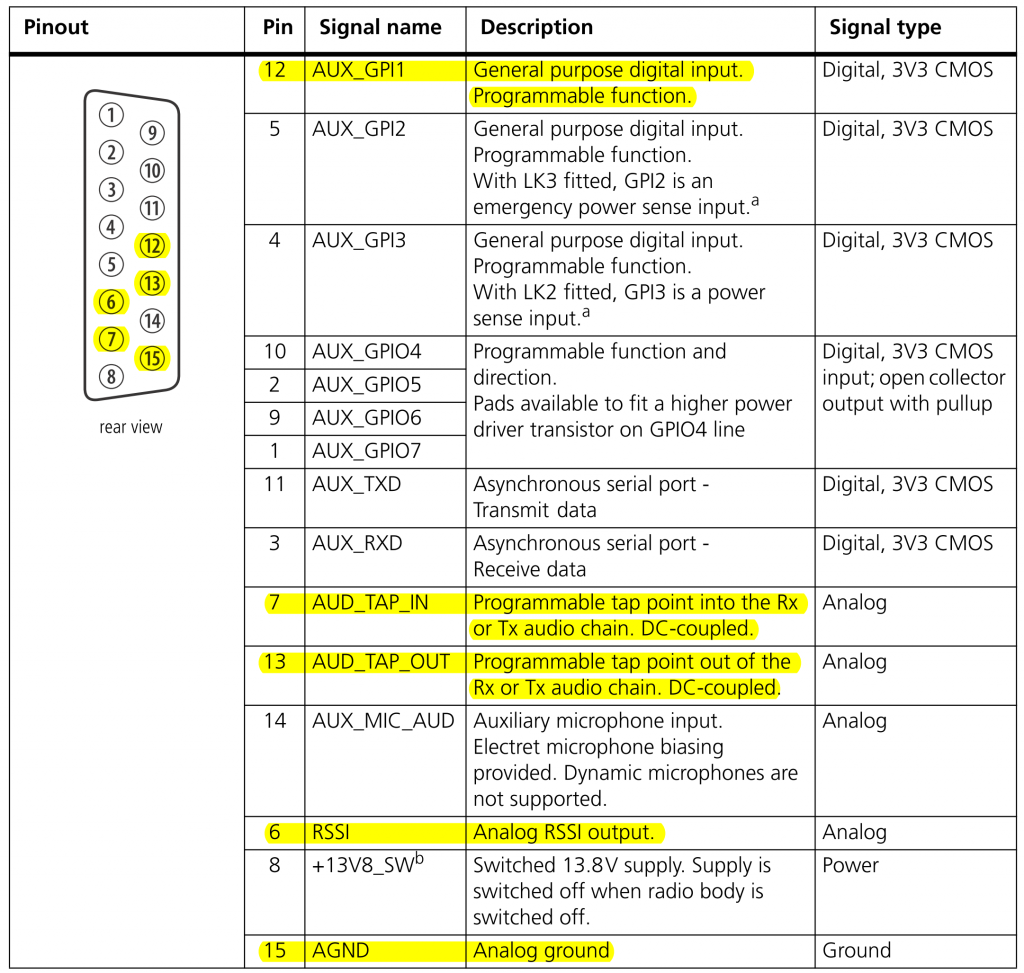

With this configuration the PTT pin will be configured as alternate output with the Tait programming application f5uii-db15.png

[Top][Home]

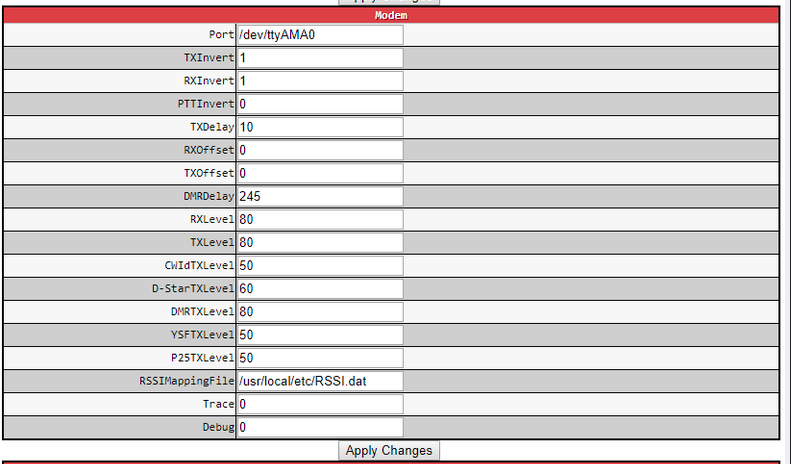

SK2HG TB7100 Modem Settings

The TB7100 has DSPs in both the TX and RX path so the signals are delayed.

Before struggeling with the RX path I decide to open the Squelch as the Audio output was squelched. It had to be done with the Tait calibration program (TB71_CAL) not with the normal CPS program (TB71_XPA), by setting a low value for squelch opening, I think I put -136 dBm there.




SK2HG - Tait TB7100 as DMR repeater:
http://www.sk2hg.se/wp/?page_id=3246

[Top][Home]

MMDVMCal

https://www.f5uii.net/en/installation-calibration-adjustment-tunning-mmdvm-mmdvmhost-raspberry-motorola-gm360/5/



[Top][Home]
Glenn Lyons VK4PK
glenn@LyonsComputer.com.au
Ver:gnl20220203 - pre published v0.9
