Moxon Antennas

Contents:
  1. The Standard Model
  2. The Moxon-Beam by DK7ZB
  3. Design Considerations
  4. VK4CEG's 6 Meter Moxon
  5. YU1QT'S 6 meter 6 element Moxon:
  6. Linux Calculator
  7. KB1OIQ - Fl_MoxGen Files - Compute Moxon Rectangle antenna dimensions
  8. References

[Top][Home]
Related Pages:
  1. My 6m Moxon
  2. Antenna Modeling

[Top][Home]

The Standard Model


[Top][Home]

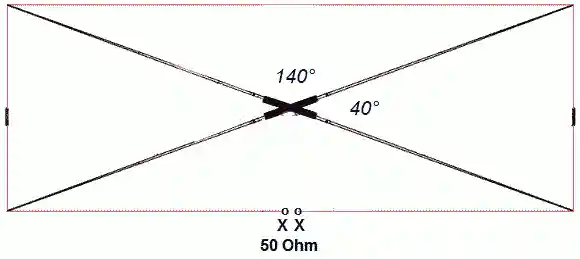

The Moxon-Beam by DK7ZB


The lengths for the Wire-Moxon, only for non-insulated 1-mm-wires!
S is the complete length of the radiator wire, R for the reflector, F for the spreader (center to corner).

BandSRABDEF
6m2826298021803234007951160
10m50405290386059071514002050
12m57206000440066080016002340
15m67407060516079095018702750
17m788082606060910110022003210
20m101101057077201195142.5028004110
30m1410014760108401630196039205760
Source: https://www.qsl.net/dk7zb/Moxon/Moxon.htm

DL2GMS Moxon project - 20,15,10m band with a single feed line: https://web.archive.org/web/20181008124717/http://moxonantennaproject.com/DL2GMS/DL2GMS_Moxon_V3.PDF

[Top][Home]

Design Considerations

This is a discussion of fitting a poynomial formular to the data using regression analysis. The raw data is not supplied but is given in graphical format. There is no discussion on how this data was measured. The formulars are given in a BASIC program. This program appears to be copied by several web calculator, however, you cannot be certain as most of these sites fail to supply the sorurce.

Designing Moxon Rectangles by Equation and by Model - L. B. Cebik, W4RNL (SK):
http://on5au.be/content/a10/moxon/moxgen.html

[Top][Home]
Moxon-AZ-EL-gains.jpg Source:http://adanvk1.blogspot.com/2015/04/09-fold-up-2-meter-moxon.html


Moxon Rectangle Generator (Windows Application):
https://ac6la.com/moxgen1.html

Designing Moxon Rectangles by Equation and by Model - L. B. Cebik, W4RNL (SK):
http://on5au.be/content/a10/moxon/moxgen.html

[Top][Home]

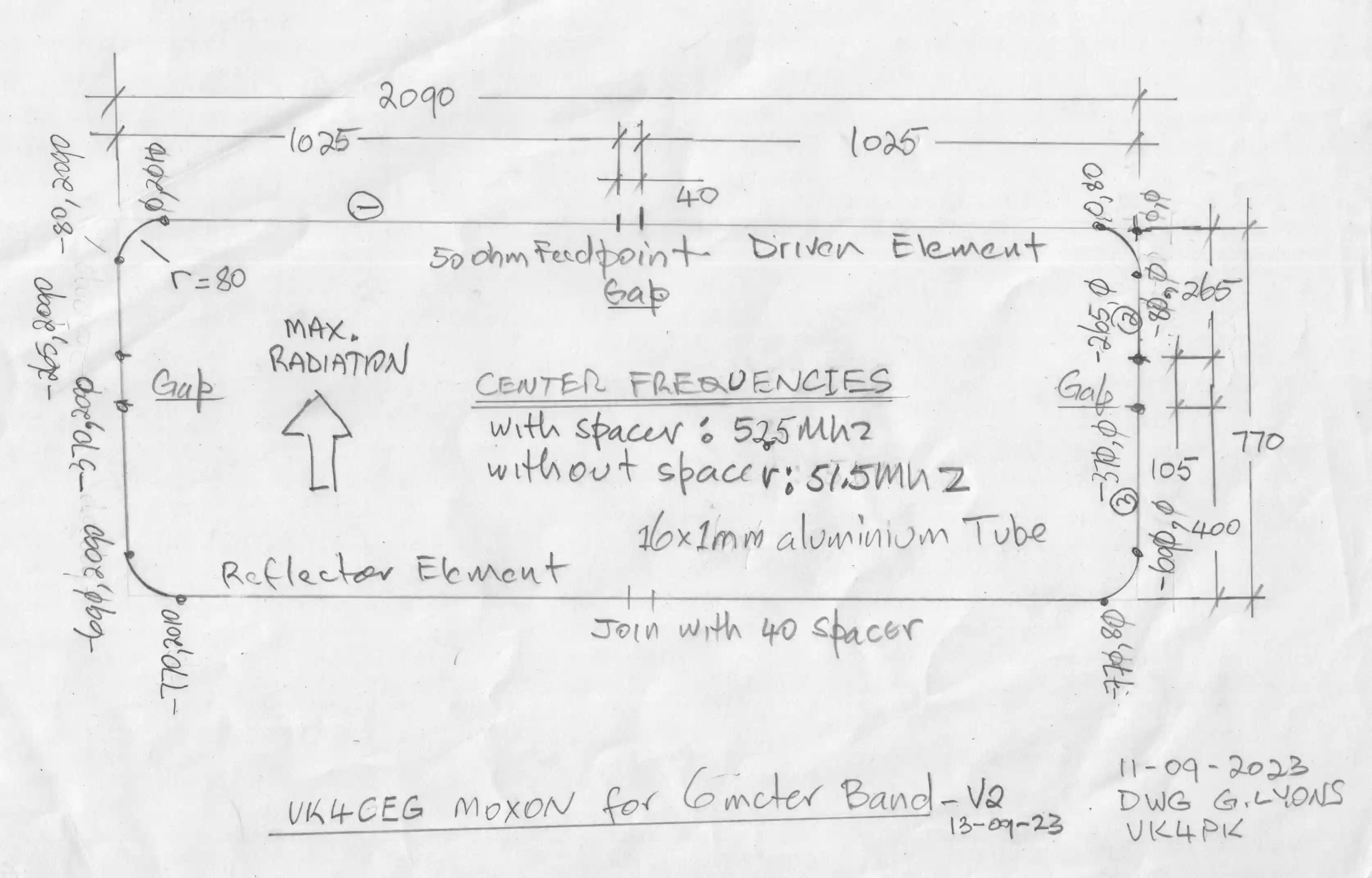

VK4CEG's 6 Meter Moxon


[Top][Home]

YU1QT'S 6 meter 6 element Moxon:

YU1QT-6m-6-el-Moxon.webp YU1QT'S 6 meter 6 element Moxon:
https://moxonantennaproject.net/YU1QT_6M/YU1QT'S%206%20METER.htm



[Top][Home]

Linux Calculator


Fl_MoxGen is a program which will compute the dimensions of a Moxon Rectangle antenna when given the desired frequency and diameter of the construction material (typically wire). It also generates PDF and xnec2c outputs.

KB1OIQ - Fl_MoxGen - Windows Based:

https://sourceforge.net/projects/flmoxgen/files/latest/download

[Top][Home]

KB1OIQ - Fl_MoxGen Files - Compute Moxon Rectangle antenna dimensions

This is one project that does supply source code in C and php4 format.

Andy Stewart, KB1OIQ: https://sourceforge.net/projects/flmoxgen

Downoad Files:
https://sourceforge.net/projects/flmoxgen/files/latest/download

[Top][Home]

References

Wikipedia - Moxon Antenna: https://en.wikipedia.org/wiki/Moxon_antenna

Wikipedia - Method of moments: https://en.wikipedia.org/wiki/Method_of_moments_(electromagnetics)

KB1OIQ - Fl_MoxGen Files: https://moxonantennaproject.net/kb1oiq/kb1oiq.htm

EZNEC Antenna Software by W7EL https://www.eznec.com/

4NEC2 by Arie Voors http://home.ict.nl/~arivoors/Home.htm

Christoph Petermann, DF9CY's nec data archive for input to EZNEC+ Version 5:
https://www.df9cy.de/tech-mat/cy-ez-files/cy-ez-files.htm

[Top][Home]
Glenn Lyons VK4PK
glenn@LyonsComputer.com.au
Ver:gnl20200921 - pre published v0.9
