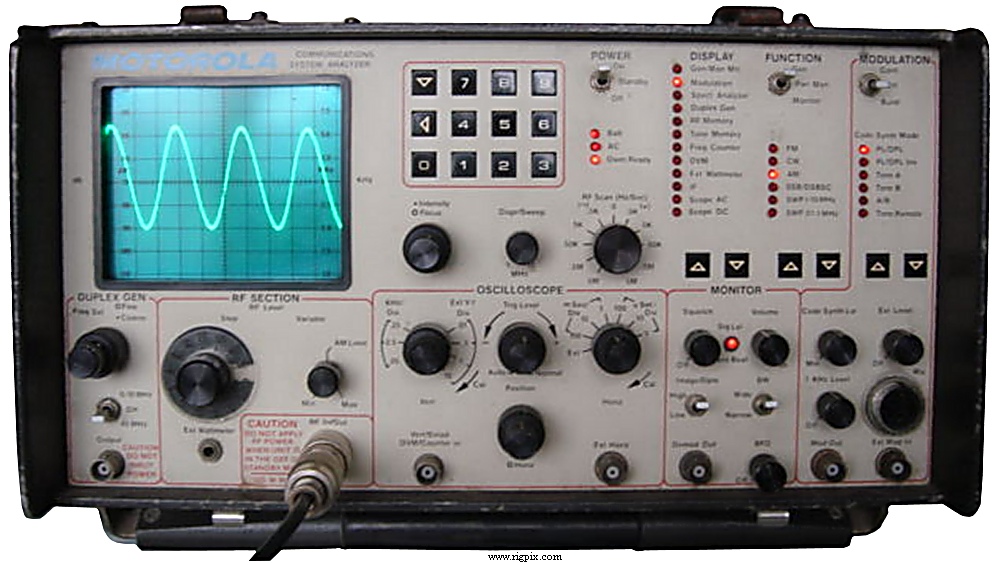

Motorola-2001D-Communications-Analyzer

1. Specification
2. Video

Specification

• Type: Communications analyzer
• Frequency range: 1-1000 MHz (monitor)
• 0.01-1000 MHz (generator)
• Mode: AM/FM/SSB/CW (monitor)
• AM/FM/DSBSC/CW (generator)
• RF Power Output: AM: 0.1 uV to 0.4 VRMS
• FM: 0.1 uV to 1 VRMS
• Voltage: Mains: 100-130 VAC or 200-260 VAC
• 11-16 VDC
• Power consumption:
• Dimensions (W*H*D): 394*21*51 mm (15.5*8.25*20")
• Weight: 16.1 Kg (35.5 lbs) without battery
• Manufactured: 1985-198x (Discontinued)
• Other: Digital voltmeter (1 / 10 / 100 / 300 V full scale)
• Duplex generator
• Frequency counter (0.01-35 MHz)
• IF display
• Oscilloscope (DC-500 KHz)
• Signal strength meter
• Signalling simulator
• SINA/Distortion meter
• Spectrum analyzer
• Sweep generator
• Wattmeter (0.1-125 W)
• Related documents: User manual (5.4 MB)
• Service manual (43.4 MB)
• Options/Accessories:
  • RTA-4000A
  • RTL-4056B
  • RTL-4065A
  • RTL-4075A
  • RTP-1002A Telescoping antenna
  • Protective canvas cover
  • Transit case
  • RF detector probe
  • Battery pack
