ST Microelectronics STM32 NUCLEO F767ZI

Contents:
  1. [Top][Home]

    Connector Layout

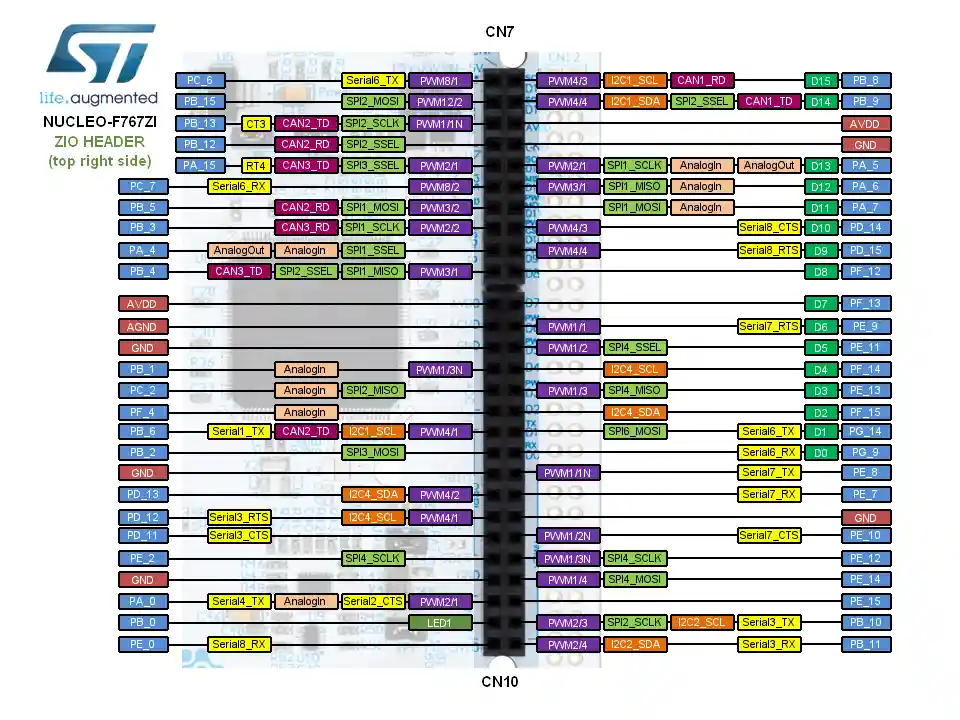

    Connectors CN7 ans CN10

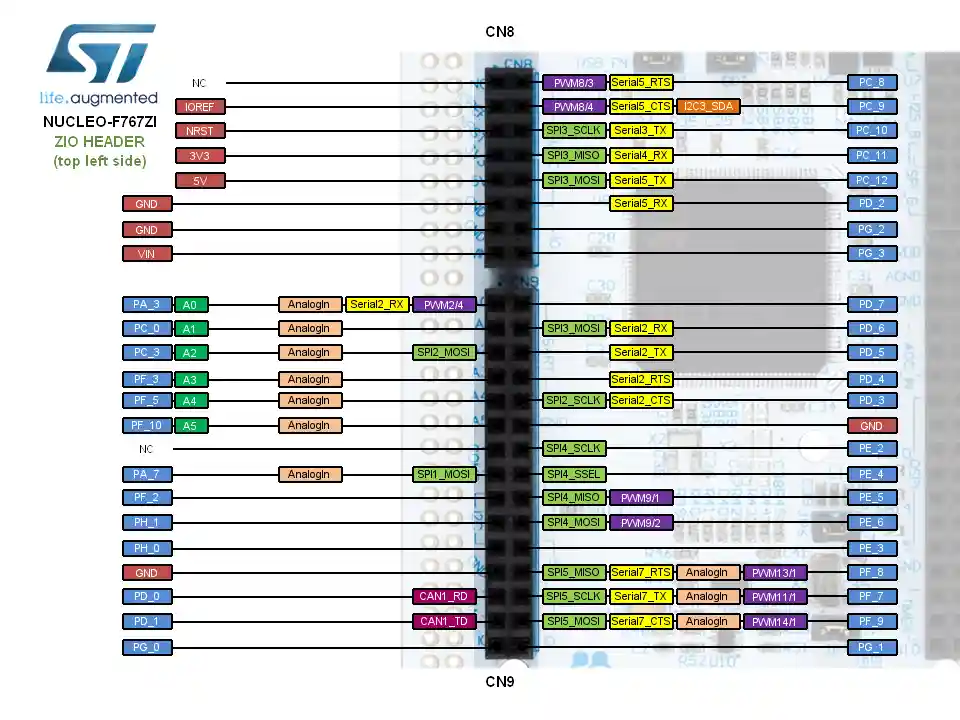

    Connectors CN8 ans CN9

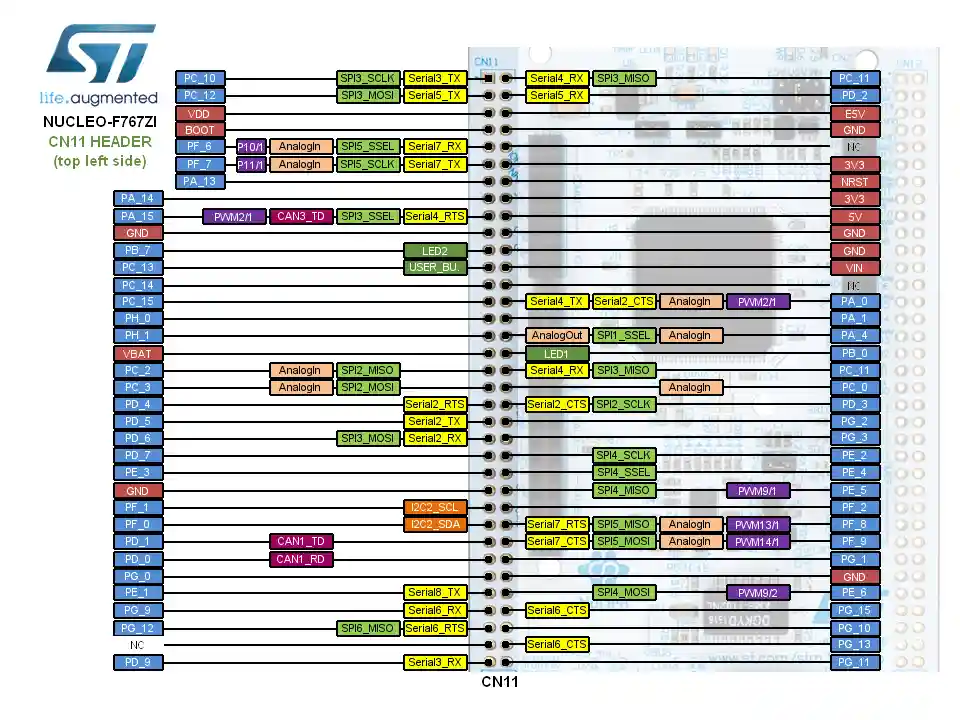

    Connector CN11

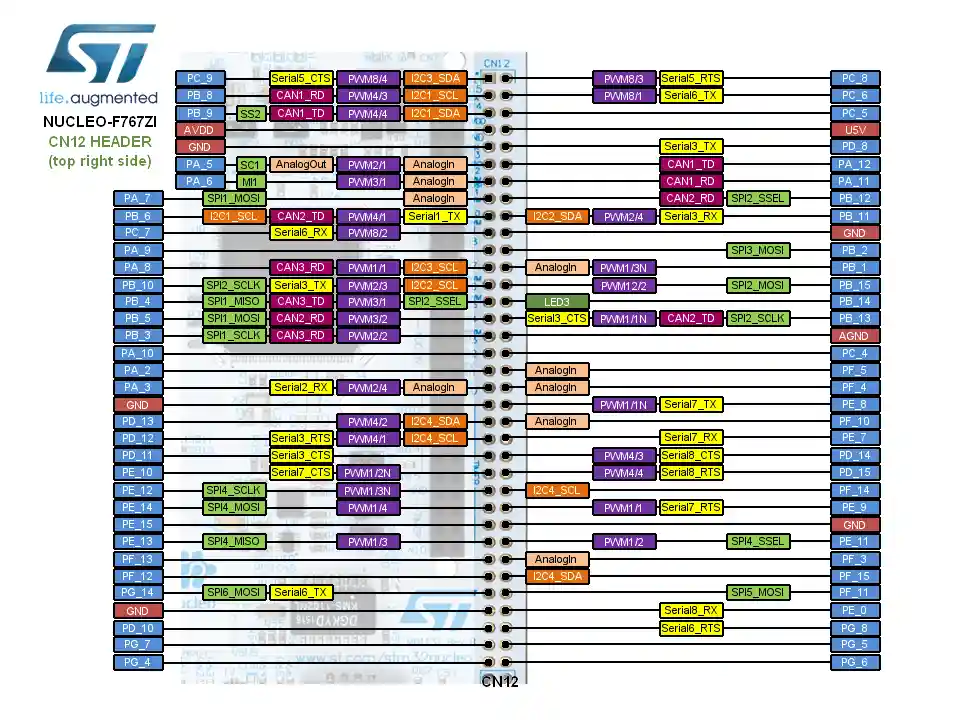

    Connector CN12
    Source:https://os.mbed.com/platforms/ST-Nucleo-F767ZI/
