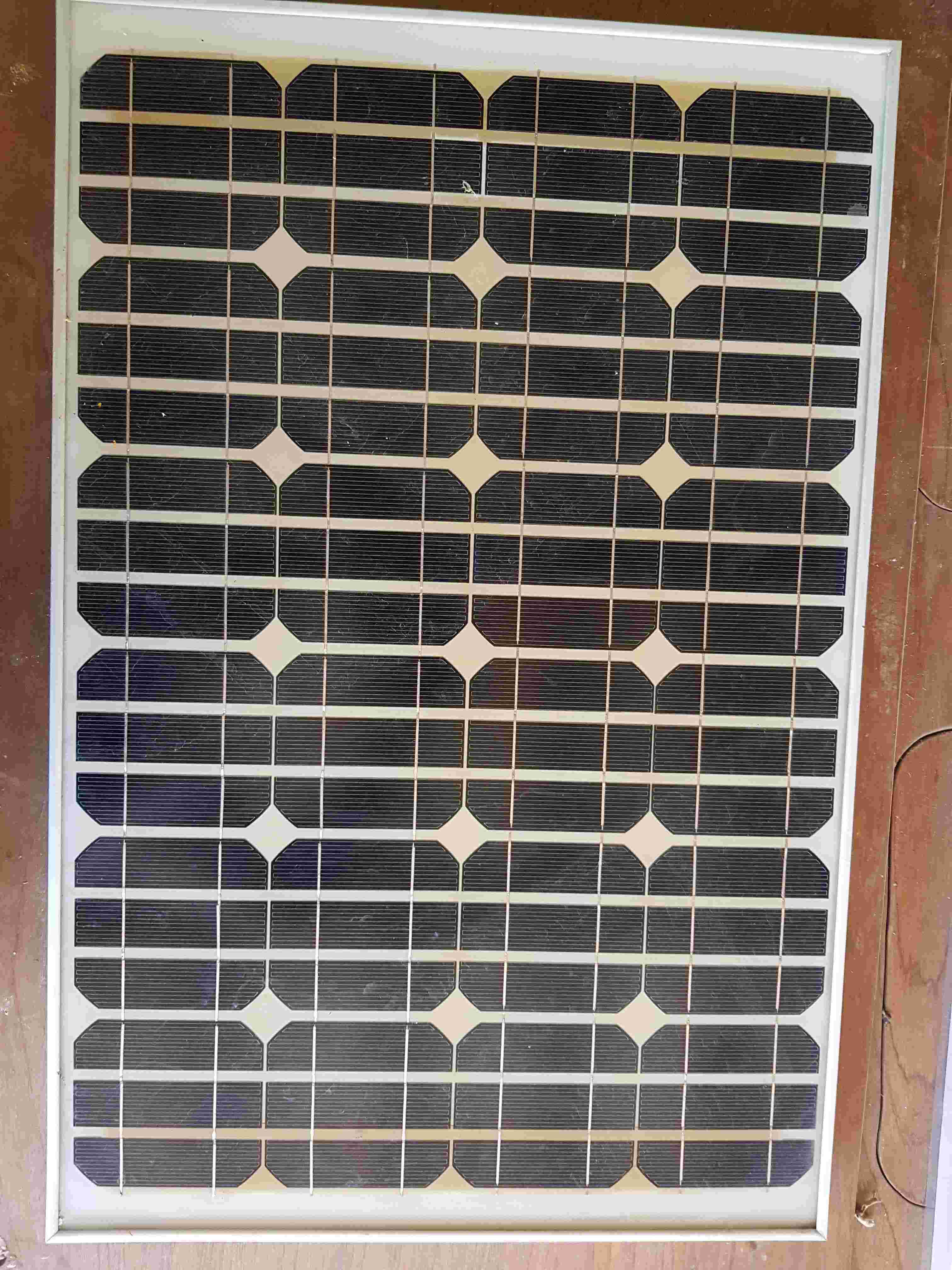

50 Watt SinoSolar Panels

1. Specifications
2. Testing

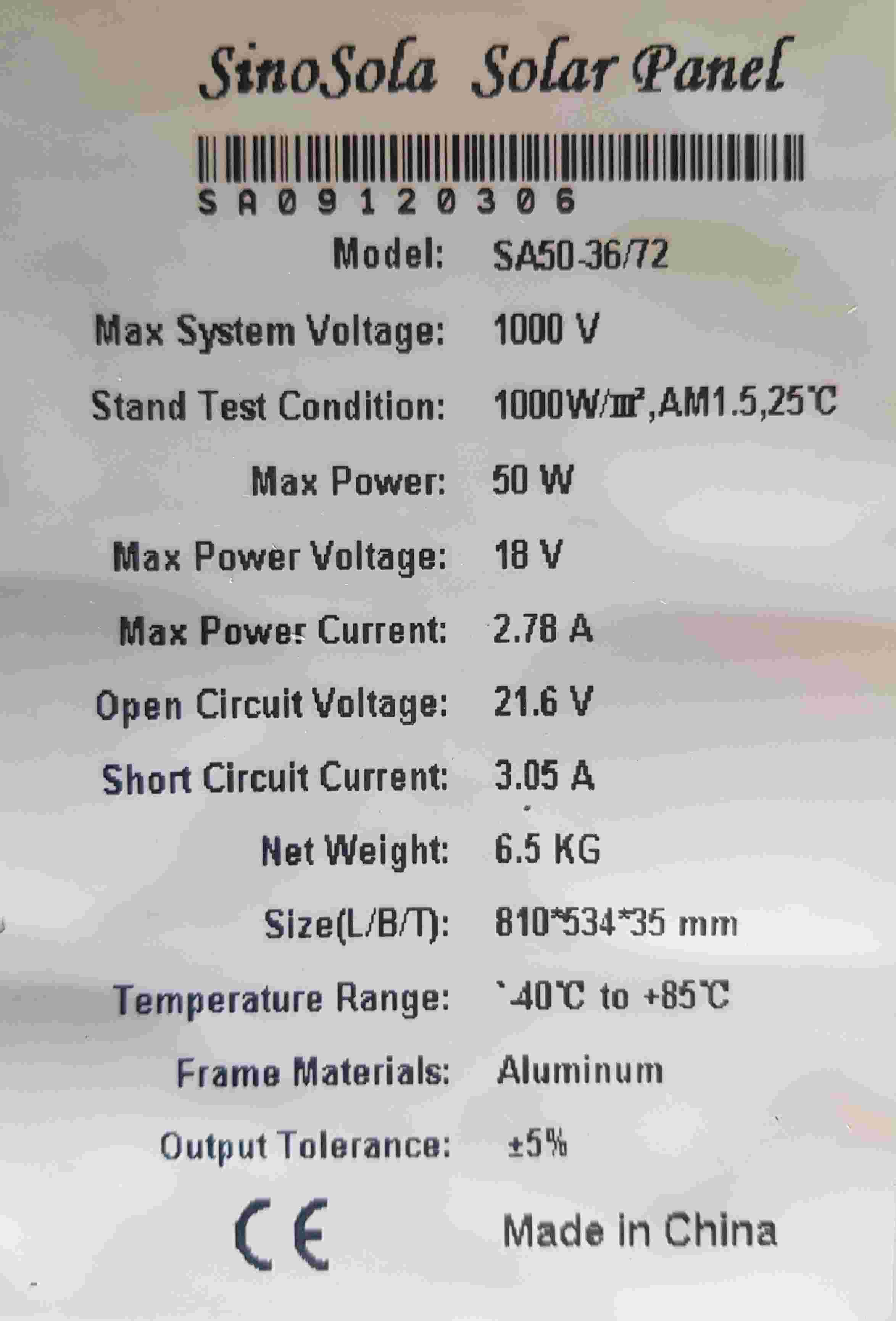

Specifications

• Brand: SinoSolar
• Model: SA50-36/72
• Serial No: SA09120306 and SA09120315
• Max System Voltage: 1000V
• Stand test Conditions: 1000W/SqM, AM1.5,25°C
• Max Power: 50W
• Max Power Voltage: 18V
• MAx Power Current: 2.78V
• Open Circuit Voltage: 21.6V
• Short Circuit Current: 3.05A
• Net Weight: 6.5Kg
• Size (L/B/T): 810 x 534 x 35 mm
• Tempreature range: -40°C to +85°C
• Frame material Aluminium
• Output Tolerance: ±5%

Testing
