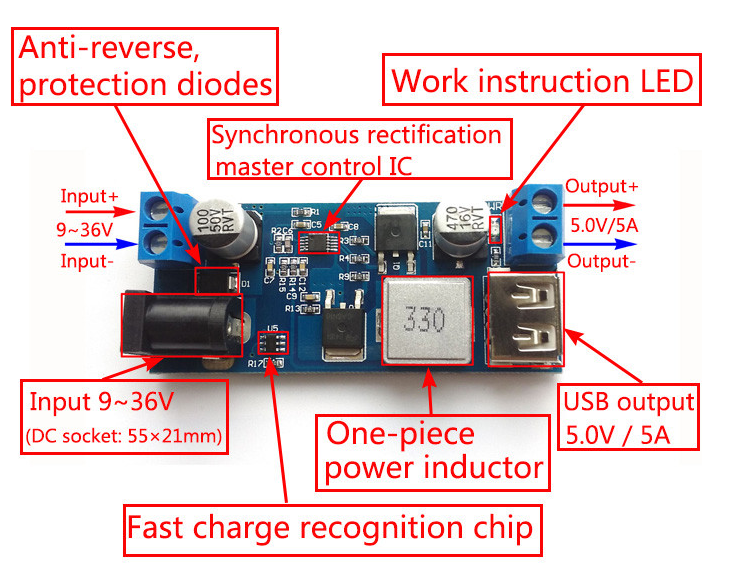

XY-3606 24V/12V DC-DC Buck/Step Down Module

1. D4184 - 40V N-Channel MOSFET

• Input DC plug and terminal,
• USB port, with fast charge recognition chip compatible with android and iphone
• Operating voltage: DC 9V-36V
• Output voltage: 5.2V / 5A / 25W
• Output capacity:
  • input 9V~24V : output 5.2V / 6A / 30W
  • input 24V~32V : output 5.2V / 5A / 25W
  • input 32V~36V : output 5.2V / 3.5A / 18W
• Size: 63*27*10mm (length*width*height)
• Weight: 22g

D4184 - 40V N-Channel MOSFET
