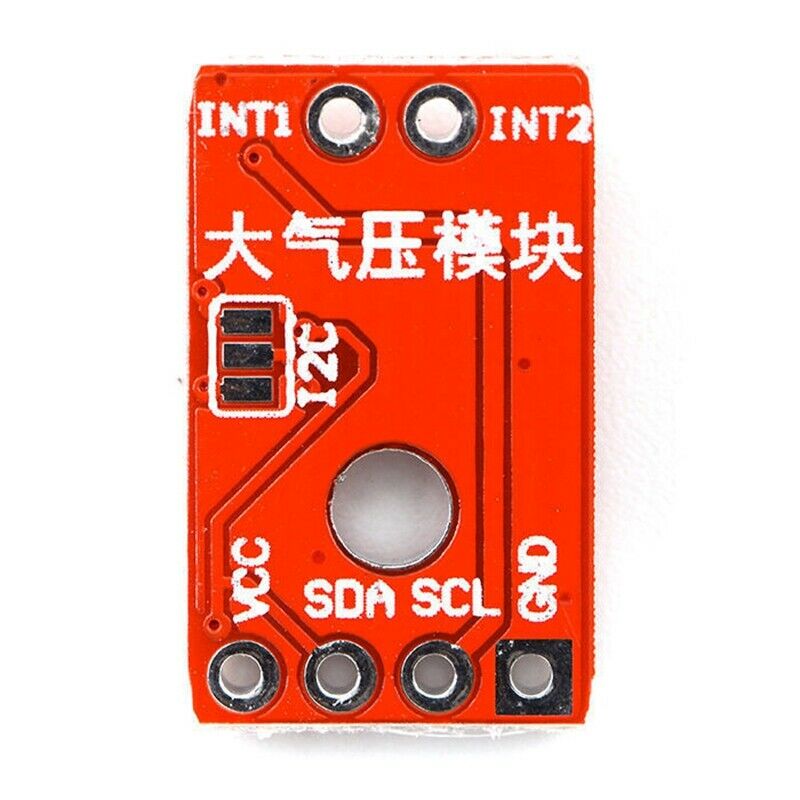

MPL3115A2 Pressure Altitude Sensor

1. Specification
2. Ebay Order
3. References

Specification

• Resolution less than 1 ft / 0.3 m
• Pressure range: 20-110 kPa
• 20-position pressure measurement (Pascal)
• 12-bit temperature measurement
• I2C digital output interface
• 2 programmable interrupt pins
• Built-in 32 sampling FIFO buffer
• Onboard intelligence: Flexible sampling rate up to 128 Hz
• Absolute measurement range: 20 to 110 kPa
• Relative measurement accuracy: ± 0.05 kPa
• Effective resolution: 1.5Pa / 0.3m
• Operating temperature range: -40 to 85 ° C
• Supply voltage: 2.5 to 3.6 V
• Logic IO port: 2.5 to 5.0 V
• I/O supply voltage: 1.62 to 3.6 V
• PCB size: 18 * 11mm
• Power consumption: 2μA (Standby mode)
• Low power mode: 8.5μA, 1Hz sampling
• size:18 * 11mm
• Material: metal + pc
• colour:Red

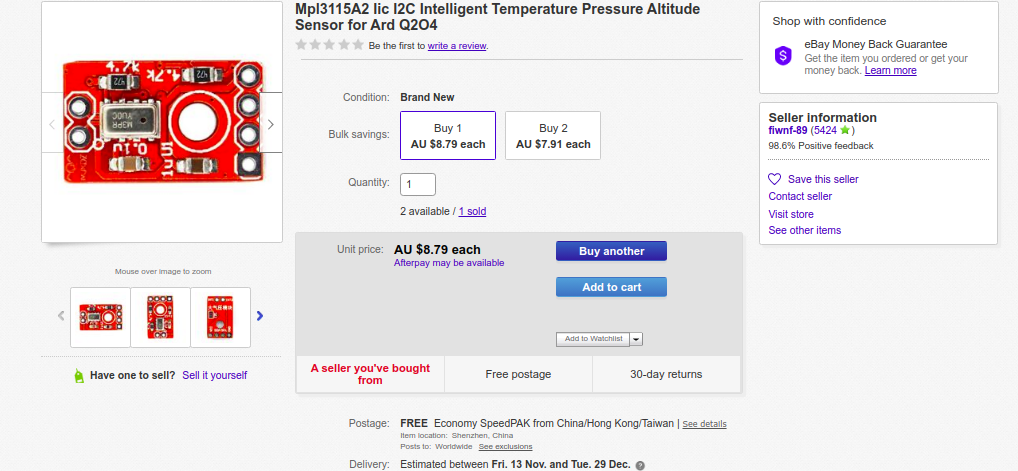

Ebay Order

References
