GPS Devices
Contents:
Ublox NEO-7M GPS
GPS Active Antenna
Neo-7 GPS and Arduino Application
[Top] [Home]
Ublox NEO-7M GPS
GPS Active Antenna
Neo-7 GPS and Arduino Application

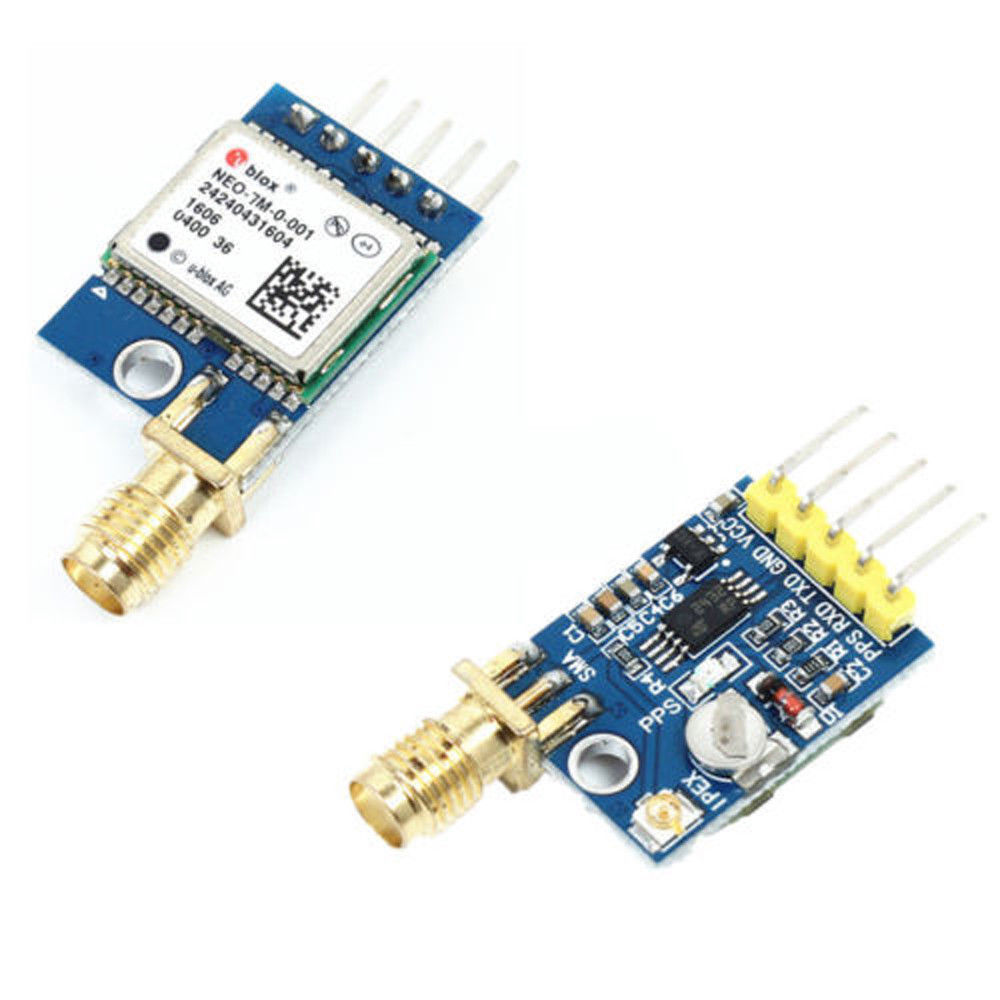

Ublox NEO-7M GPS
GPS Active antenna
Specifications:
GNSS engine for GPS/QZSS, GLONASS
GPS module size: 23 * 17mm
Dual GPS Antenna Interface: SMA and IPEX
Baud rate and other data can be saved without power
Serial data output of raw data
Can be accessed at 5V and 3.3V
The Datasheet can be access here:
https://www.u-blox.com/sites/default/files/products/documents/NEO-7_DataSheet_%28UBX-13003830%29.pdf
[Top] [Home]

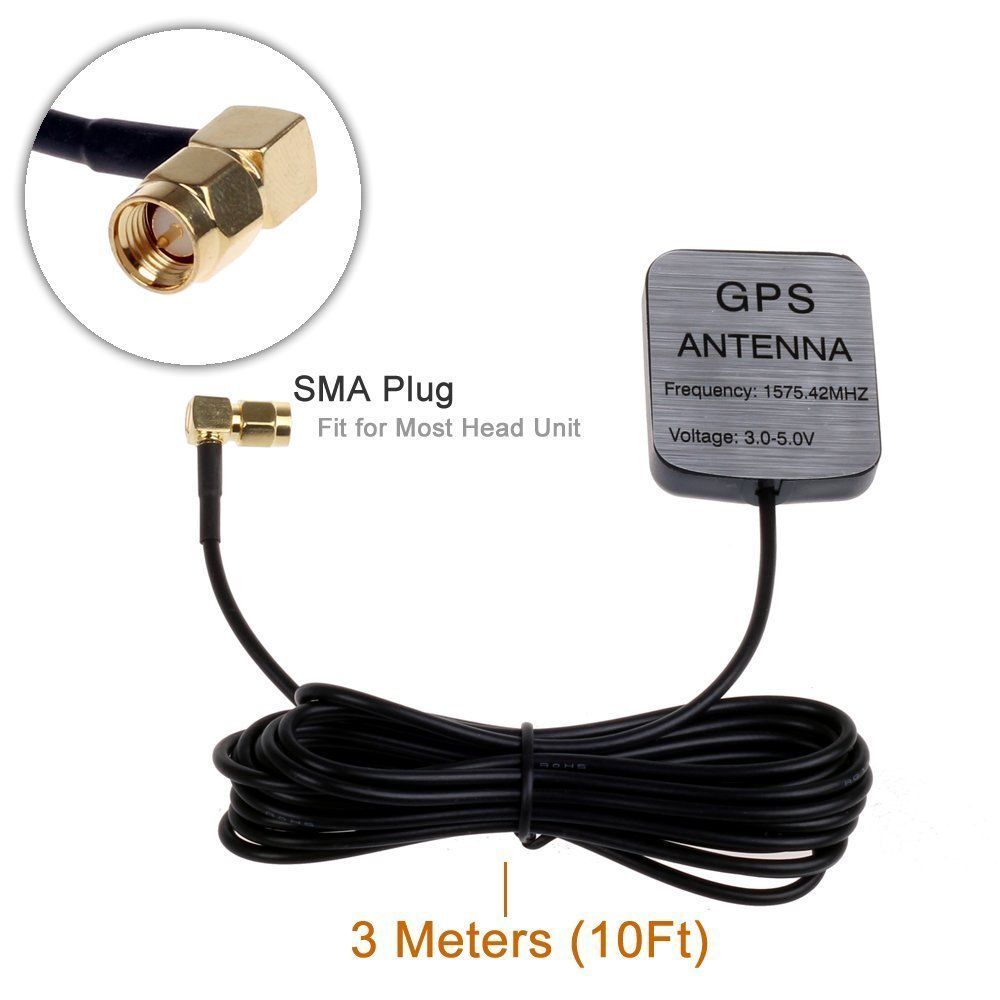

GPS Active Antenna
GPS Active antenna
GPS Active Antenna SMA male connector
Length: 9feet (3m)
Center Frequency: 1575.42MHz-3MHz / 1575.42MHz+3MHz
LNA Gain(Without cable): 25dB
Noise Figure: less than 1.5dB
V.S.W.R: less than 2.0
DC current: 10mA Max
Mounting: Magnetic base
Housing: Black
Working Temp: -40C~+85C
Humidity: Humidity 95%~100%RH
Weatherproof: 100% Weatherproof
Voltage: 3~5V
[Top] [Home]
Neo-7 GPS and Arduino Application
This project investigtes the Ublox Neo7 GPS module with an Arduino application.
Ublox NEO 7 GPS module with Arduino:
https://rydepier.wordpress.com/2015/12/22/ublox-neo-7-gps-module-with-arduino/
rydepier/UBlox-NEO-7-GPS-and-Arduino - Source Archive"
Programming The u-blox NEO-7M-C UART GPS Module:
https://copperhilltech.com/blog/programming-the-ublox-neo7mc-uart-gps-module/
Project 012: Arduino Ublox Neo-7N GPS Module Project :
https://create.arduino.cc/projecthub/infoelectorials/project-012-arduino-ublox-neo-7n-gps-module-project-d88500
[Top] [Home]
Glenn Lyons VK4PK
