ESP8266 Development Board
Contents:
- Pinouts
- ESP6288 Development Board on Ebay
[Top][Home]
USB to ESP8266 Serial Module TTL Wifi Developent Board/Adapter
[Top][Home]
Pinouts

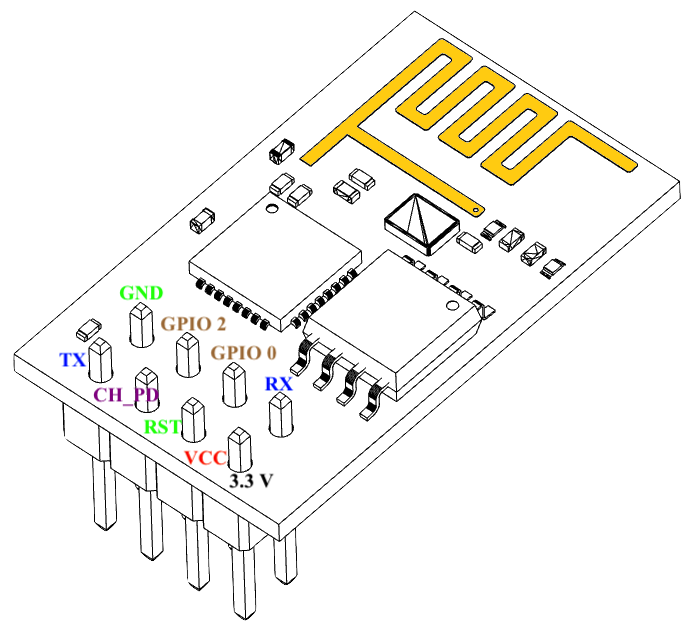

Pinout for ESP-01 module:
- GND, Ground (0 V)
- GPIO 2, General-purpose input/output No. 2
- GPIO 0, General-purpose input/output No. 0
- RX, Receive data in, also GPIO3
- VCC, Voltage (+3.3 V; can handle up to 3.6 V)
- RST, Reset
- CH_PD, Chip power-down
- TX, Transmit data out, also GPIO1
source:
https://en.wikipedia.org/wiki/ESP8266
This module contains a ch341-uart USB to Serial converter.
