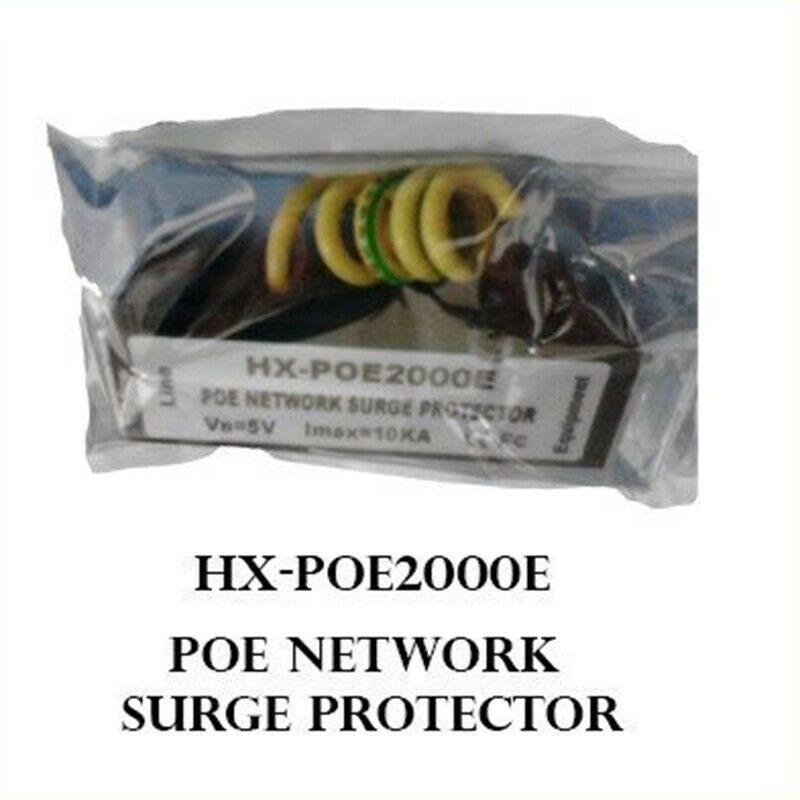

HX-POE2000E Network Surge Protector
PoE 68V Lightning arrester Ethernet Protector Thunder POE Gigabit For CAT5 CAT6
- Ethernet Surge Protector and Lightning Arrester POE Gigabit CAT5 CAT6
- Supports PoE+ and Gigabit 1000Mbs

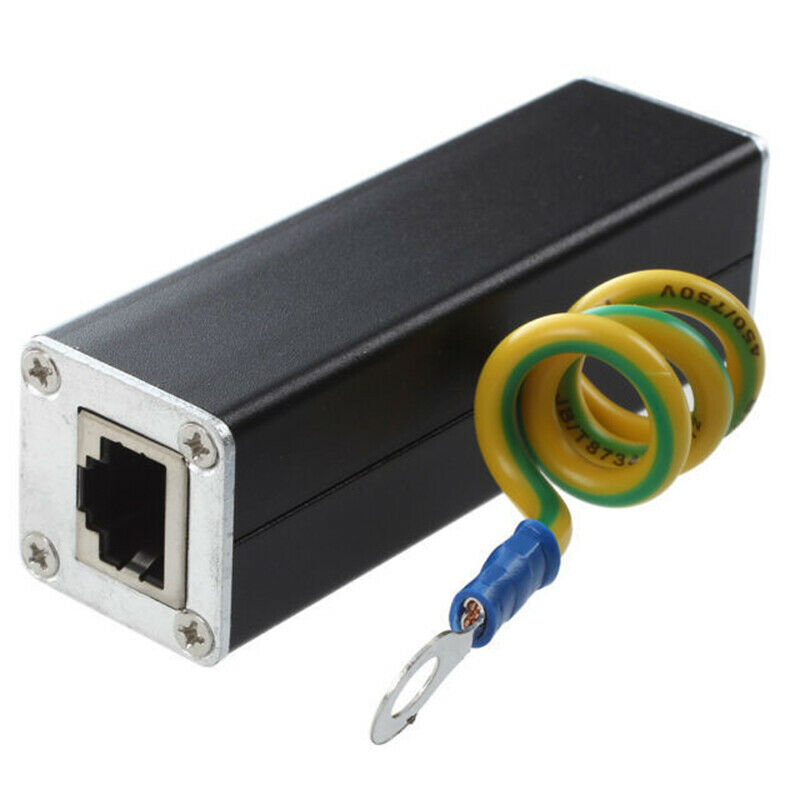

- Provides grounding Cable
- RJ45 Jack to RJ45 Jack, Power and signal line protection
- CAT5/CAT5e compatible,
- integral mounting bracket
- Designed to protect Power-Over-Ethernet (PoE) ans data/communication lines
Specifications:
- Operating voltage: data 5V, PoE 68V
- Clamping voltage: 90V
- Maximum surge discharge current: 10KA (8 to 20uS)
- Peak pulse current: 100A (10 to 1,000uS)
- Pin protected: all 8 pins (signal pairs and spare pairs)
- Protection mode: differential and common mode
- Insulation impedance: Greater than 1,000MΩ
- Maximum shut capacitance: Less than 2.5pF
- Data rate: 1,000Mbps
- Impulse protected voltage: Less than 250V
- Response time: Less than 1nS
- Dimensions: 111*25*25mm (Approx.)
