PZEM-015-Multifhctional-Battery-Meter

1. Specification
2. Setup Instructions

Specification

• 9 major functions

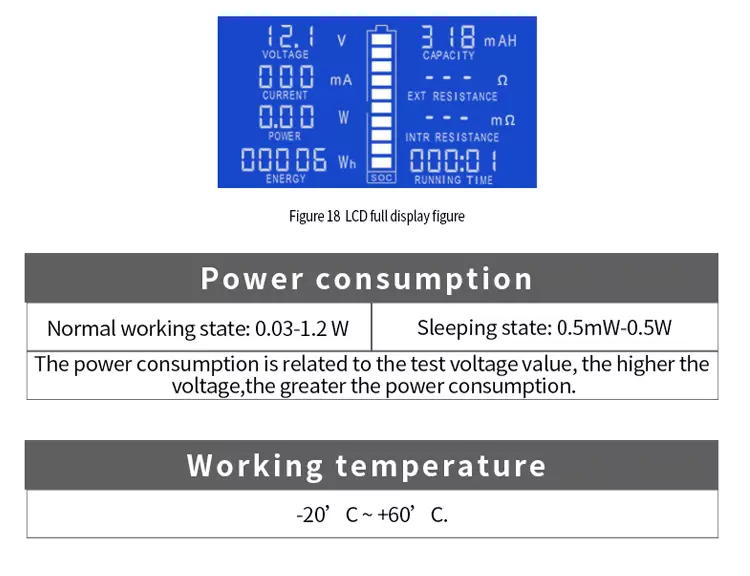

• Full viewing angle LCD
• Screwless installation
• 50A range (with 50A shunt)
• Size: 89.6x49.6x24.25mm
• Display size: 51x30mm
• This meter is mainly used to measure the
  1. voltage
  2. discharge current
  3. discharge power
  4. discharge impedance
  5. internal resistance
  6. capacity
  7. remaining power
  8. energy consumption
  9. running time

• Current measurement range: 0-300A, <1A shows 999mA
• Voltage measurement range: 0-200V, <10V display 9.99V
• Power measurement range: 0-60000W, <10W display 9.99W
• Energy consumption measurement range: 0-9999kWh, <1kWh display 999Wh
• Impedance measurement range: 0-1000 Ω, <100 Ω shows 99.9 Ω
• Capacity measurement range: 0-1000AH, <1AH shows 999mAH
• Internal resistance measurement range: 0-999mΩ, format: 999mΩ
• Running time range: 0-999 hours, format 0:00:00~999:59 (overflow to 0)
• Remaining battery power: Displayed by the battery symbol, a total of 10 grids, each grid represents 10% of the electricity.

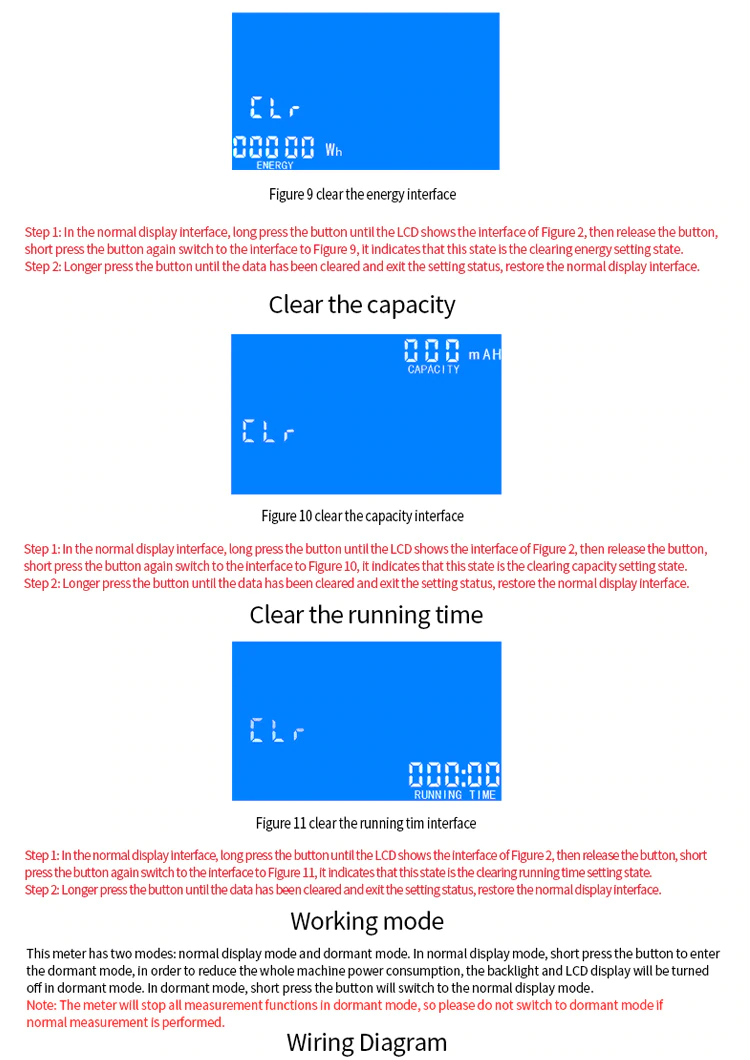

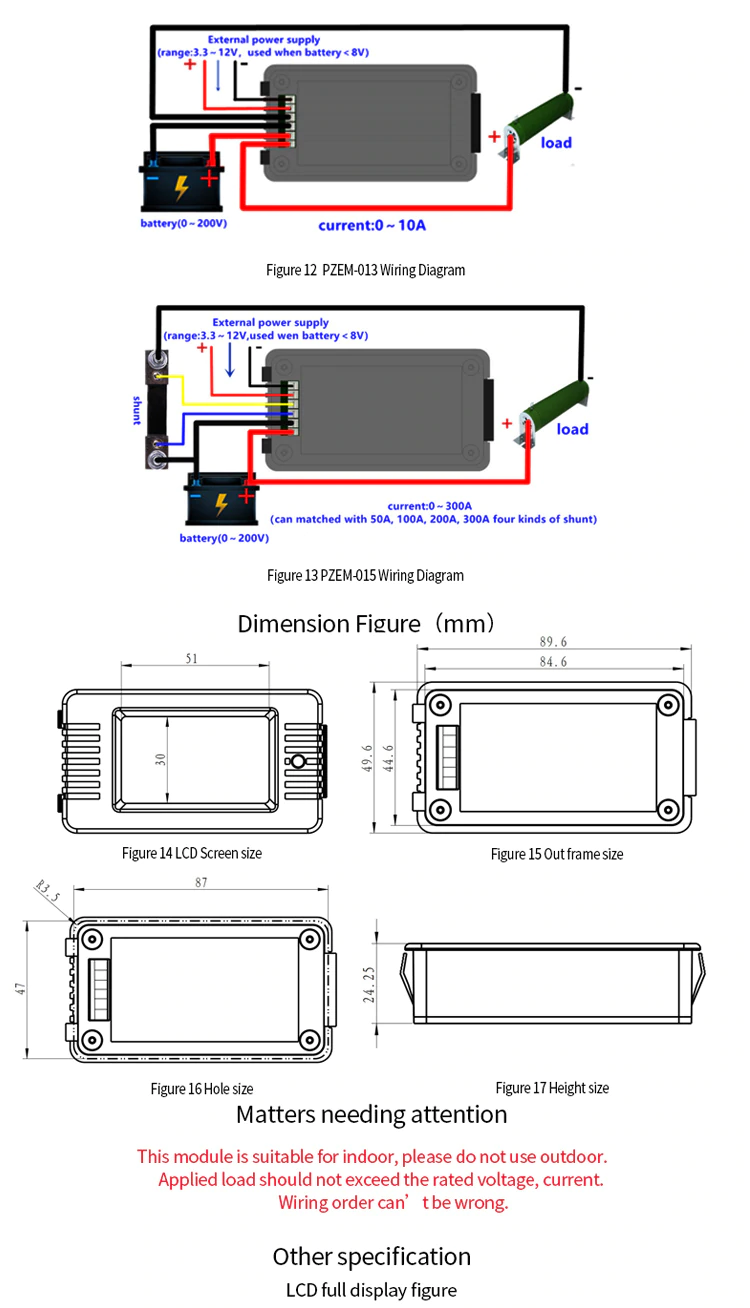

Setup Instructions
