Dual Band Yagi Stainless Steel

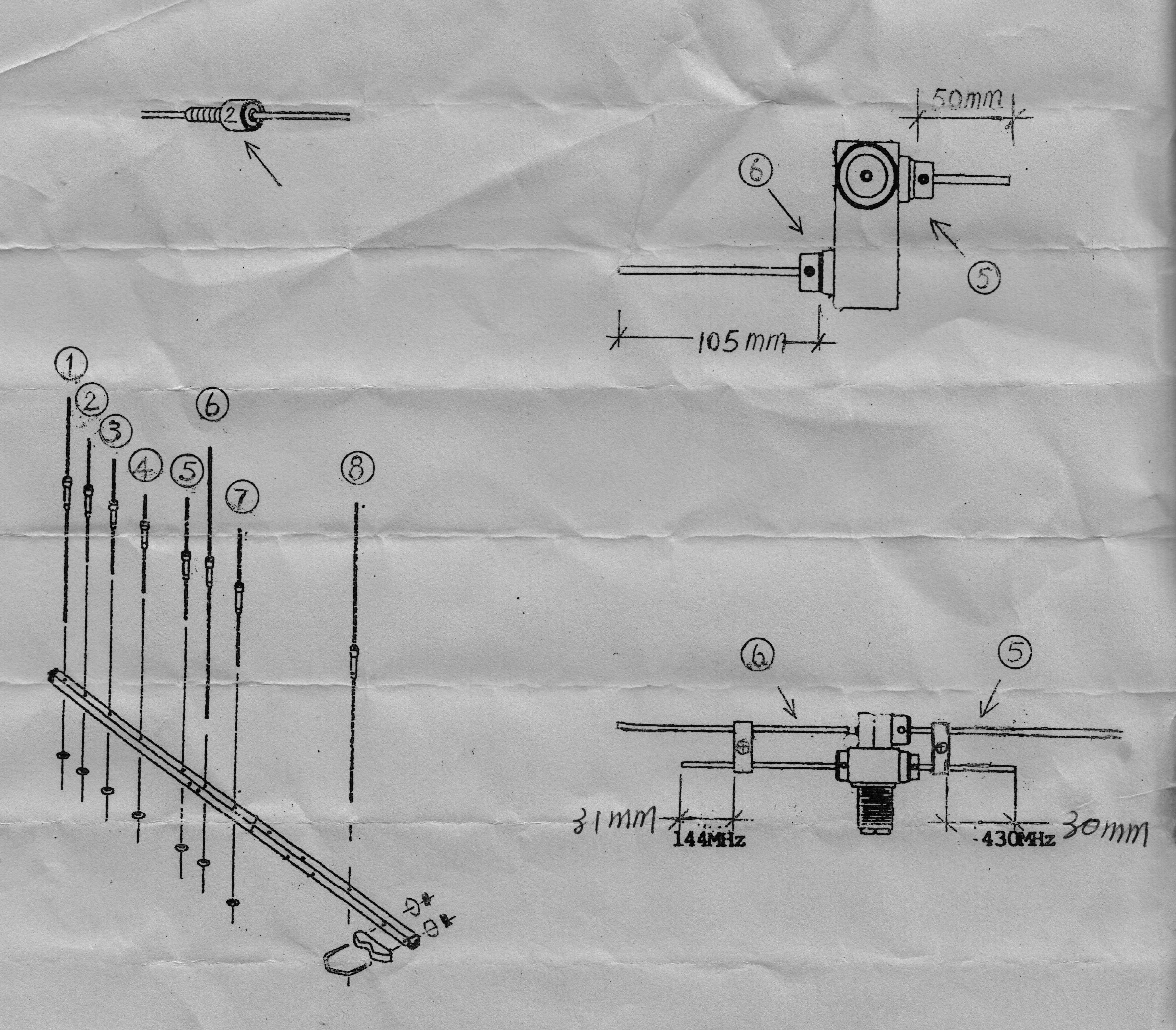

This antenna is tuned by Gama Matching Loop.
Electrical specifications:
- Frequency range: 144/430MHz
- Impedance: 50Ω
- VSWR:<1.8/ <1.5
- Gain: 9.5dBi/ 11.5dBi
- Polarization: vertical
- Horizontal 3dB beam width: 53°/ 45°
- Vertical 3dB beam width: 48°/ 40°
- Front to back ratio: >12 dB
- Lighting protection: direct ground
- Connector: N-female / SL259.female
- Maximum power input: 100W
Mechanical specifications:
- Dimensions: 1135×1040 mm
- Weight: 1.15Kg
- Rated wind velocity: 60m/s (117 knots)

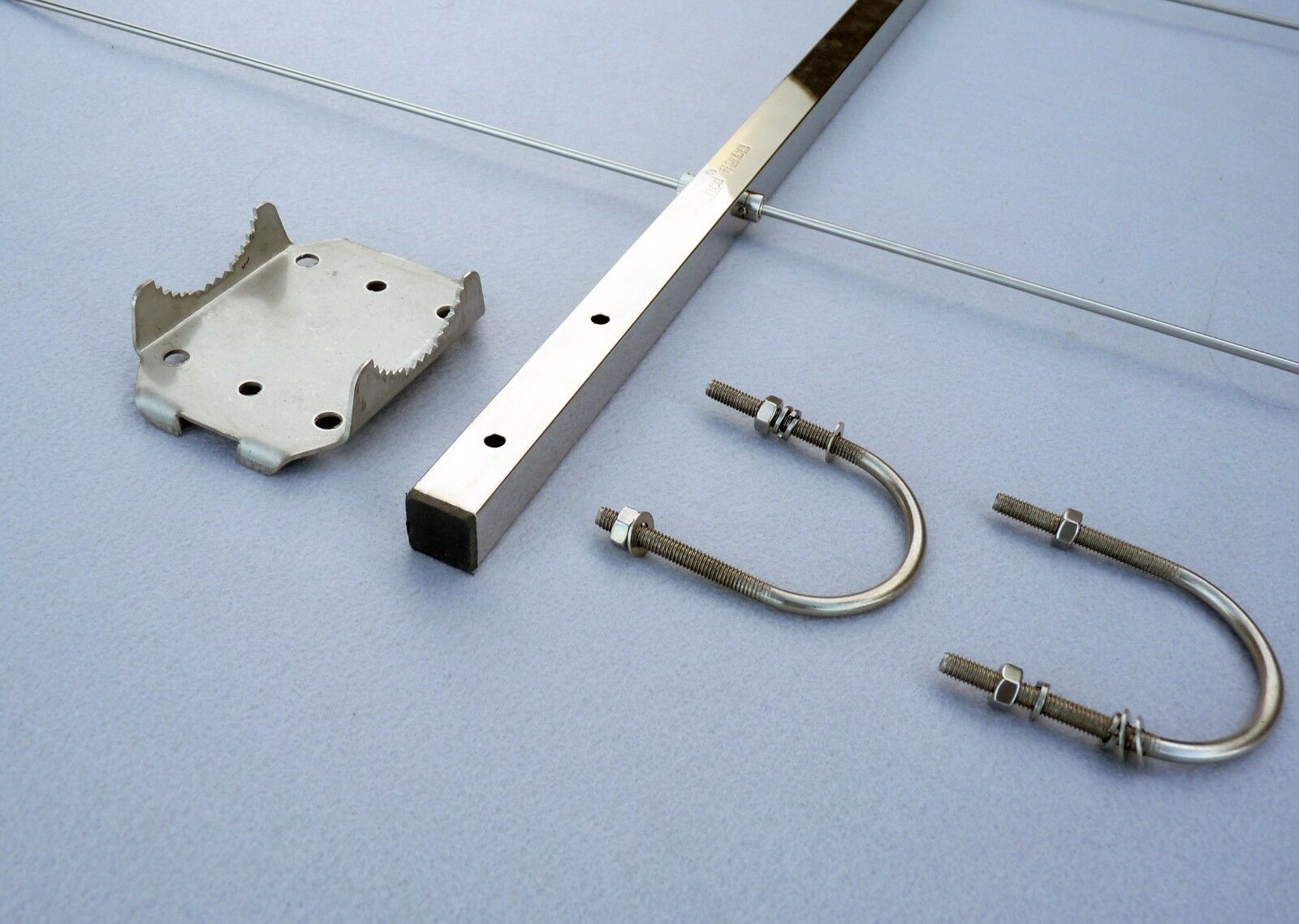

- Mounting hardware:Ø30-Ø50 mm
Probably made by Fujian Jiasida Communication Tech Co., Ltd.
1141 Road Nanhuan, Licheng, Quanzhou, Fujian, China
