MR100-Digital-Antenna-Analyzer

1. References

Description:

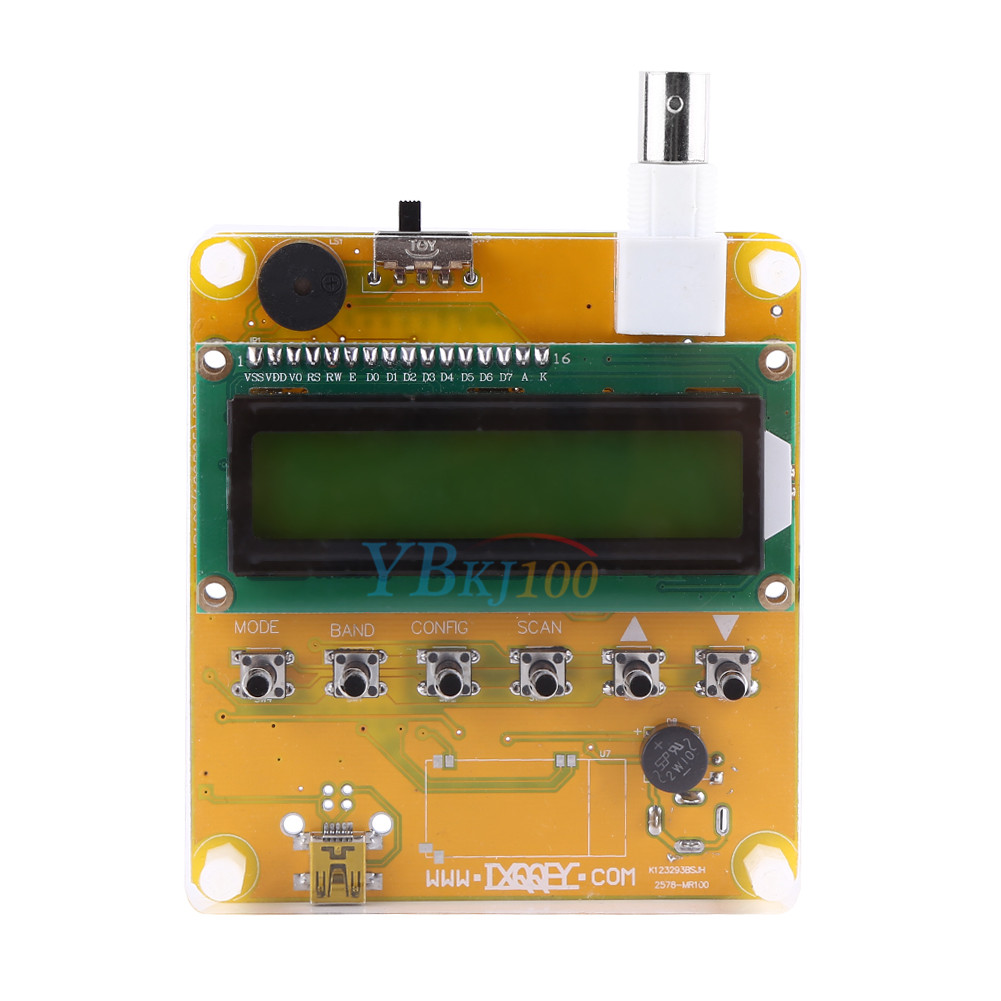

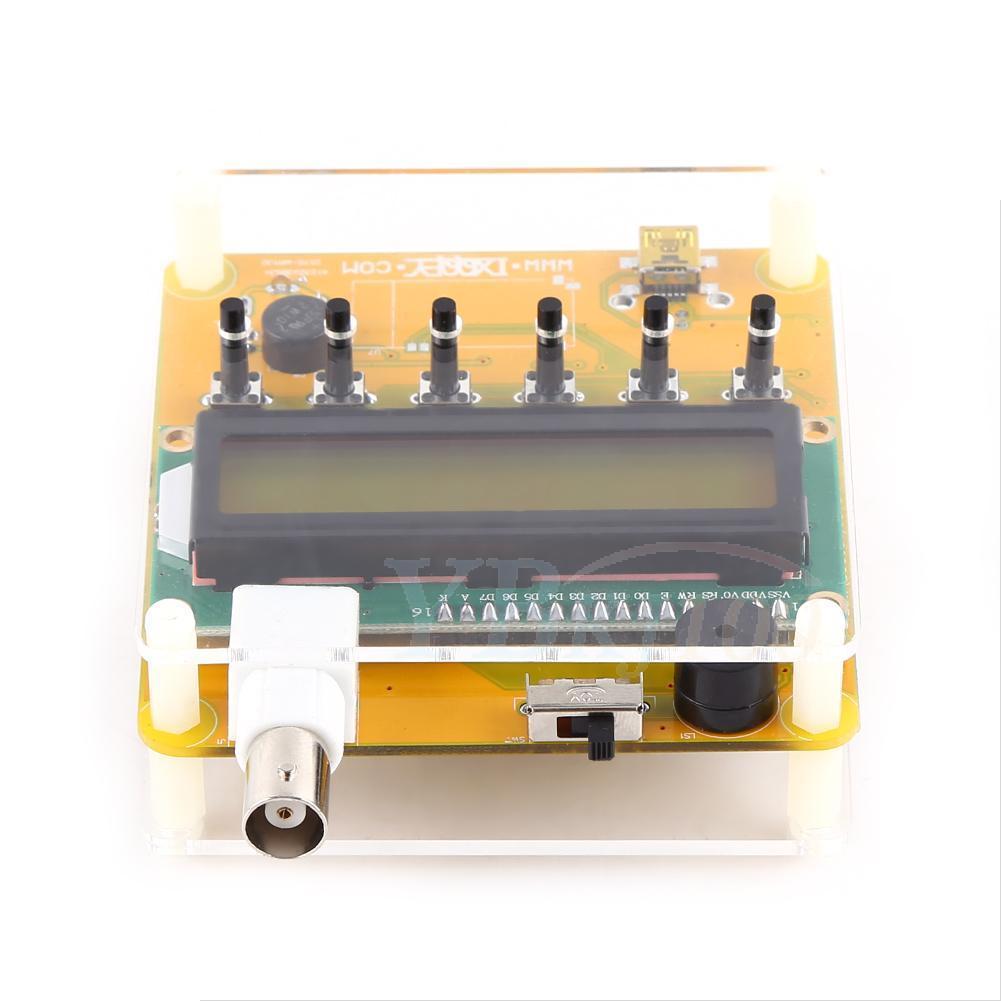

The antenna analyzer can be used to test a standing wave, resistance, capacitance, etc. Computer interface for graphical presentations, The analyzer is lightweight and small, designed with a LCD display with background lighting function. It is supplied with a transparent acrylic cover for protection.

Specifications:

• Power Supply Voltage: 12V
• Connector: Q9
• Test Frequency: 1-60MHz

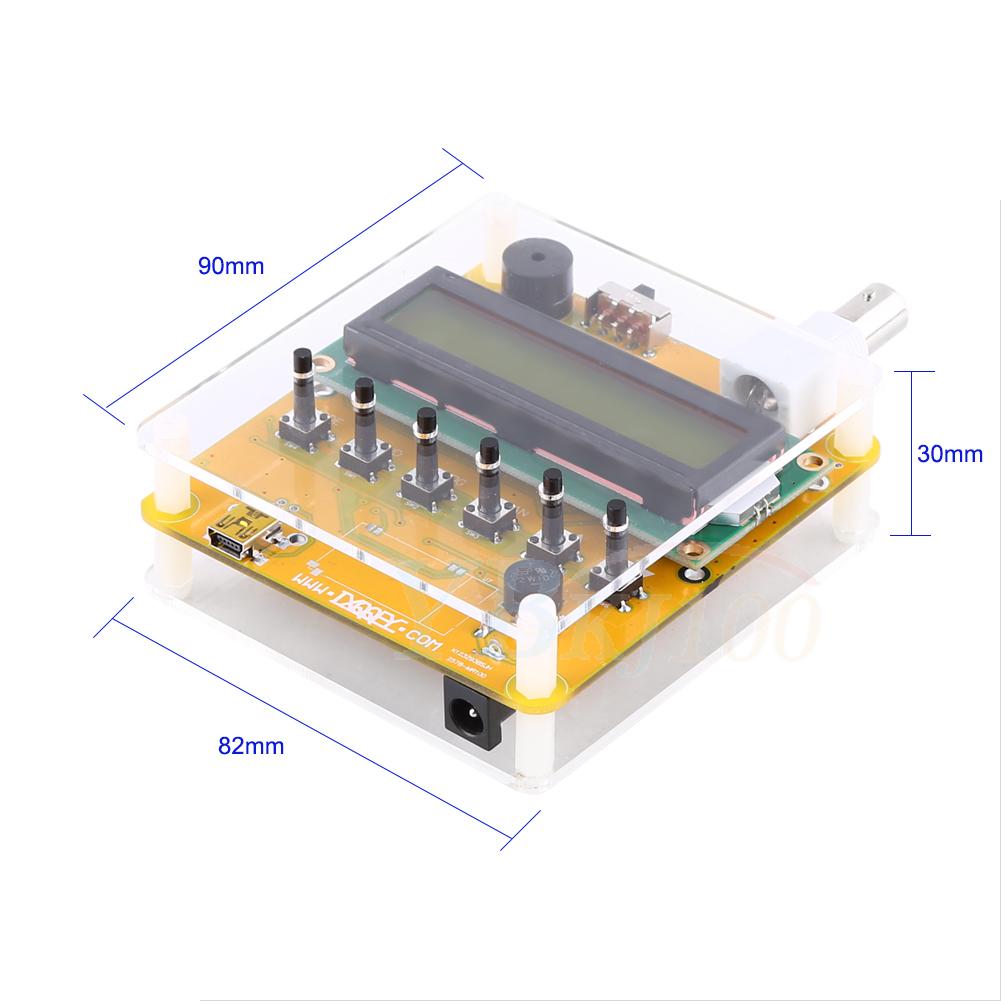

• Size: 90 x 82 x 30mm / 3.54 x 3.22 x 1.18"
• Weight: 180g(approx.)
