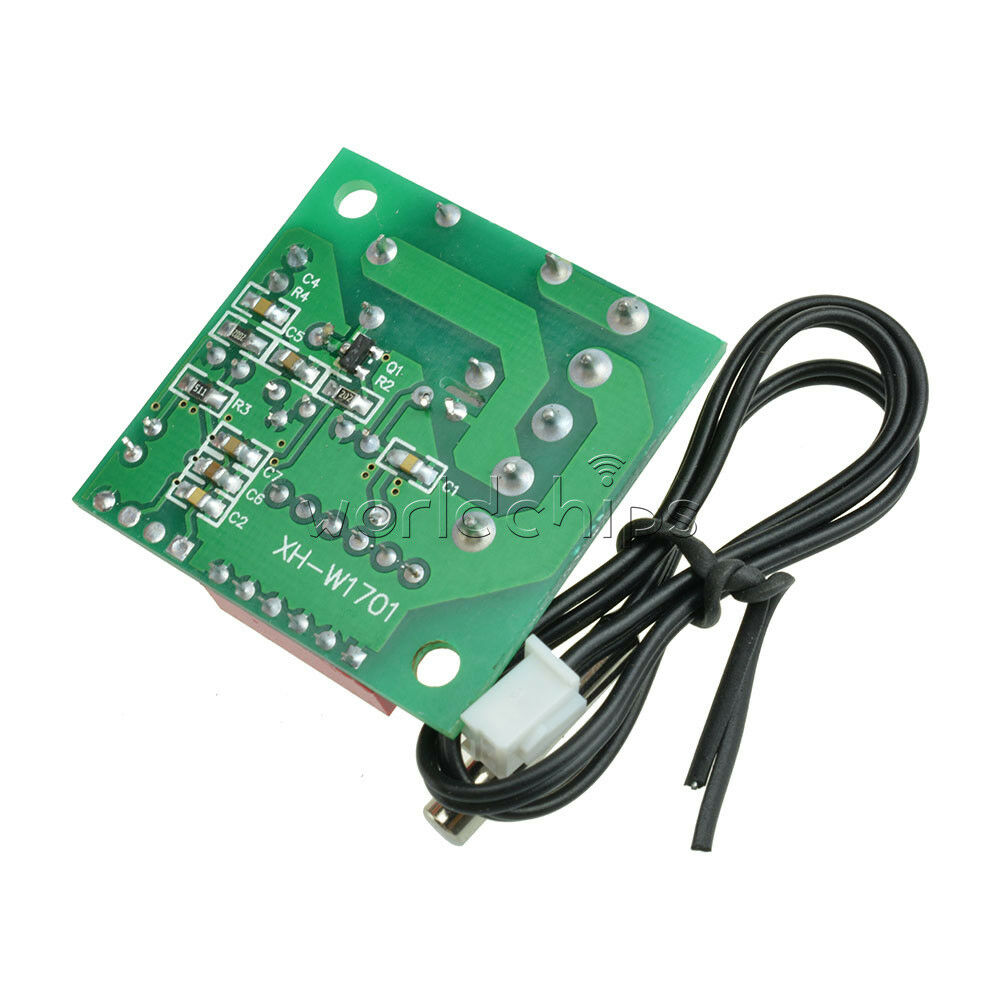

W1701 Tempreature Control Relay
Specification:
- Model: W1701
- Size: Approx. 36.5x36.5x18 mm/1.44x1.44x0.71 inch
- Installation screw: M3 * 2 diagonal size 39.5mm
- Temperature range: 20-90 ℃
- Control Mode: Heating, Cooling, Heat dissipation
- Control Accuracy: 0.1 ℃
- Hysteresis Setting: 1-10 ℃
- Refresh Rate: 0.5S
- Supply Voltage: DC 12V
- Output Voltage: DC 12V
- Output Power: Max 200W
- Static Current: ≤ 3MA, attract current ≤ 60MA
- Temperature Probe: 10K thermistor
- B25 = 10K 3950
- 30cm Waterproof Sensor

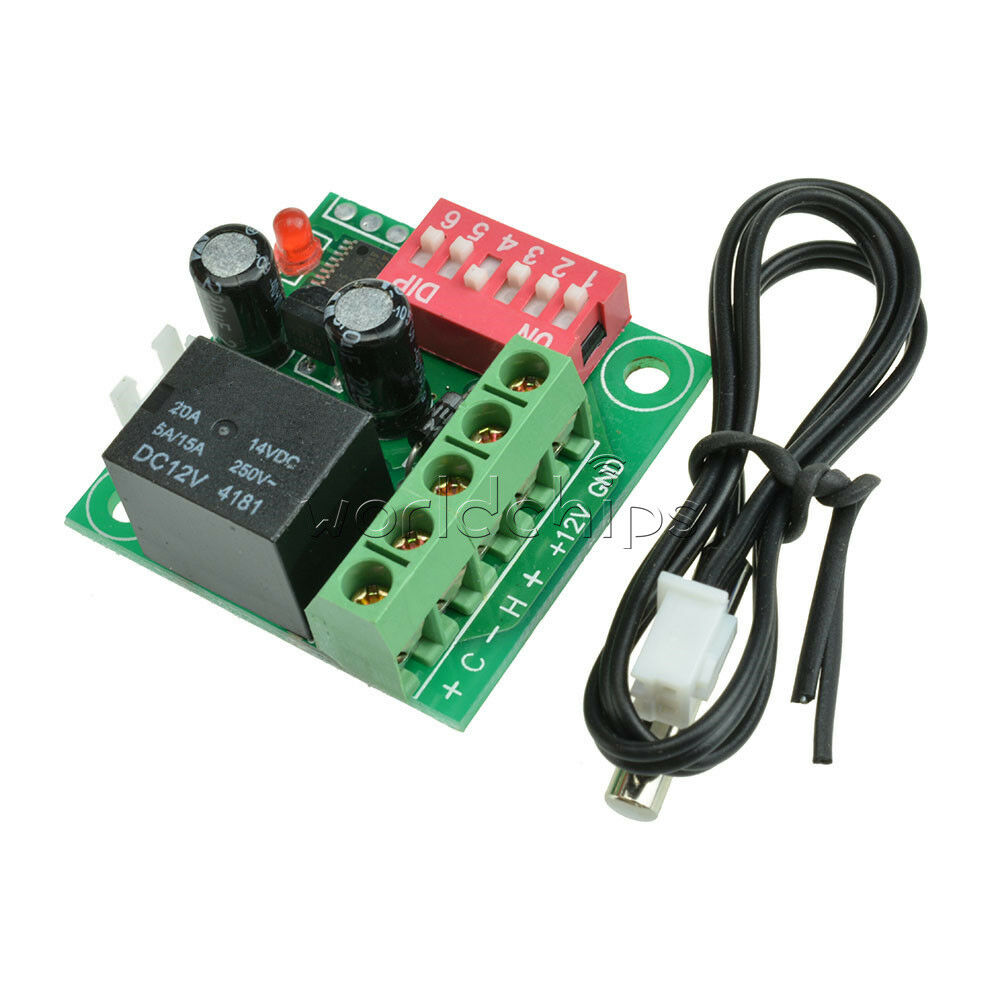

Instructions:
- For heating: Please connect 12V heater to the - H +
- For cooling: Please connect cooler to the + C -
- For heat-sinking: Please connect cooler or heatsink connected to the + C -
- Red LED is on indicating the cooling (+ C-) output,
- Red LED is off indicating heating (-H +) output

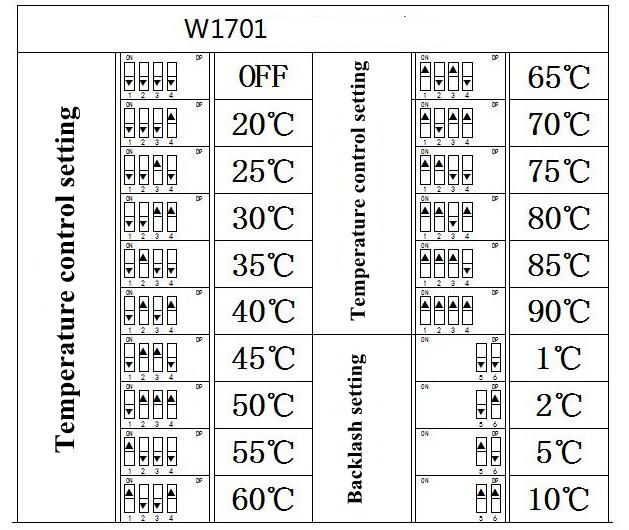

Switch Positions:
