Tohtsu CX-520D Coaxial Relay

Tohtsu CX-520D Coaxial Relay
http://www.w54.net/ebay/oe9pmj/cx520d_3.pdf

RF Impedence: 50 Ohms

Voltage Switching Time Mechanical Electrical Characteristics
Frequency (MHz)Maximum VSWRMinimum IsolationMaximum Insertion LossMaximum Input Watts
50 1.005 -65 dB-0.10 dB350
150 1.01 -60 dB -0.15 dB 300
5001.03-53 dB-0.18 dB300
10001.05-46 dB-0.20 dB 250
15001.17 -42 dB-0.20 dB 200
20001.20 -39 dB-0.25 dB150


Coil Characteristics
Nominal Voltage Voltage Range Resistance Ohms
12Vdc 9Vdc - 16.5Vdc 75 Ohms +/-10% at 20 degrees C.
24Vdc 18Vdc - 26.5Vdc 300 Ohms +/-10% at 20 degrees C.


[Top][Home]



DG7YBN's technical Page on Coax Relays

http://dg7ybn.de/technical/Coax_Relays.htm

[Top][Home]


Relays

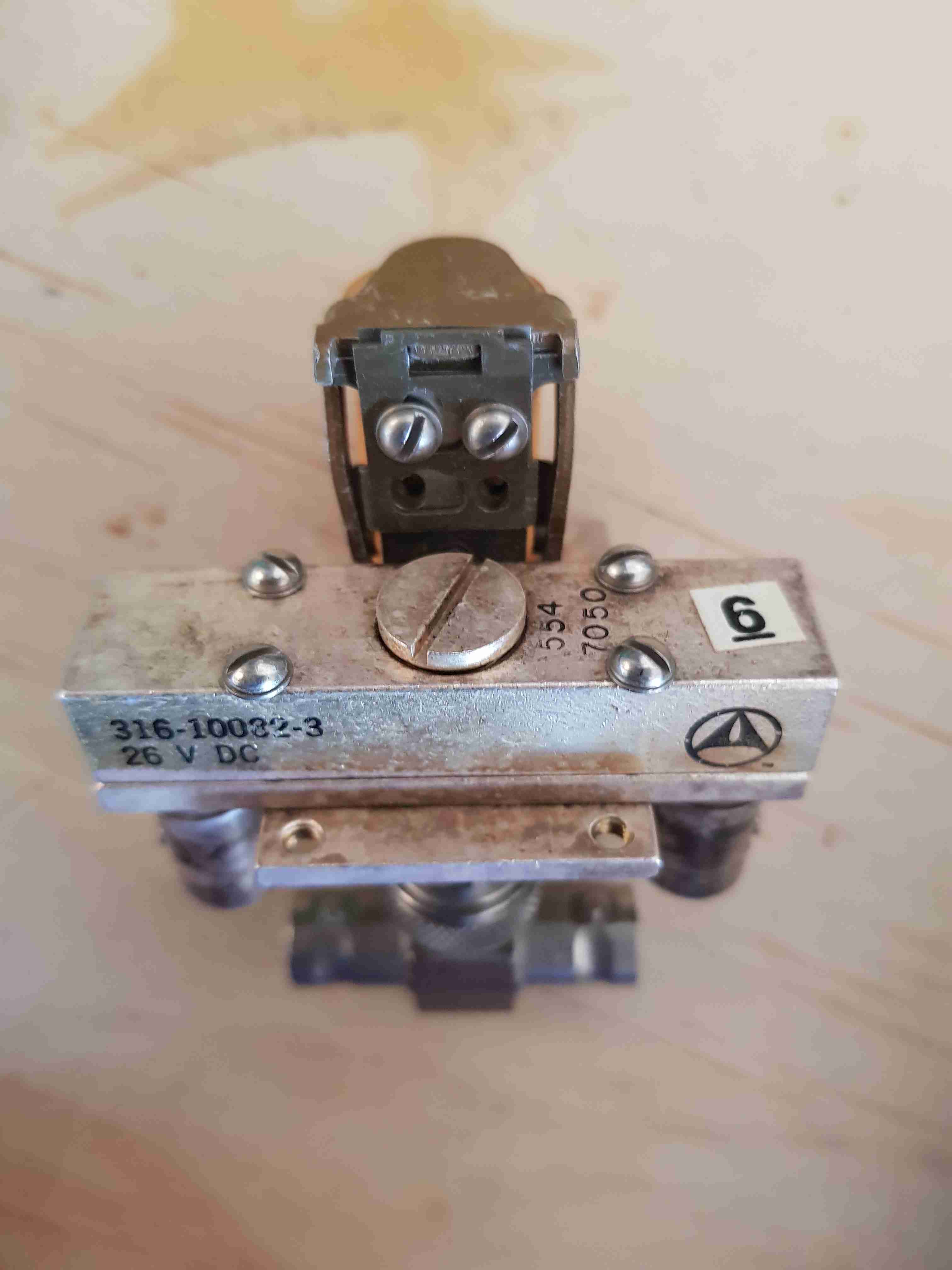

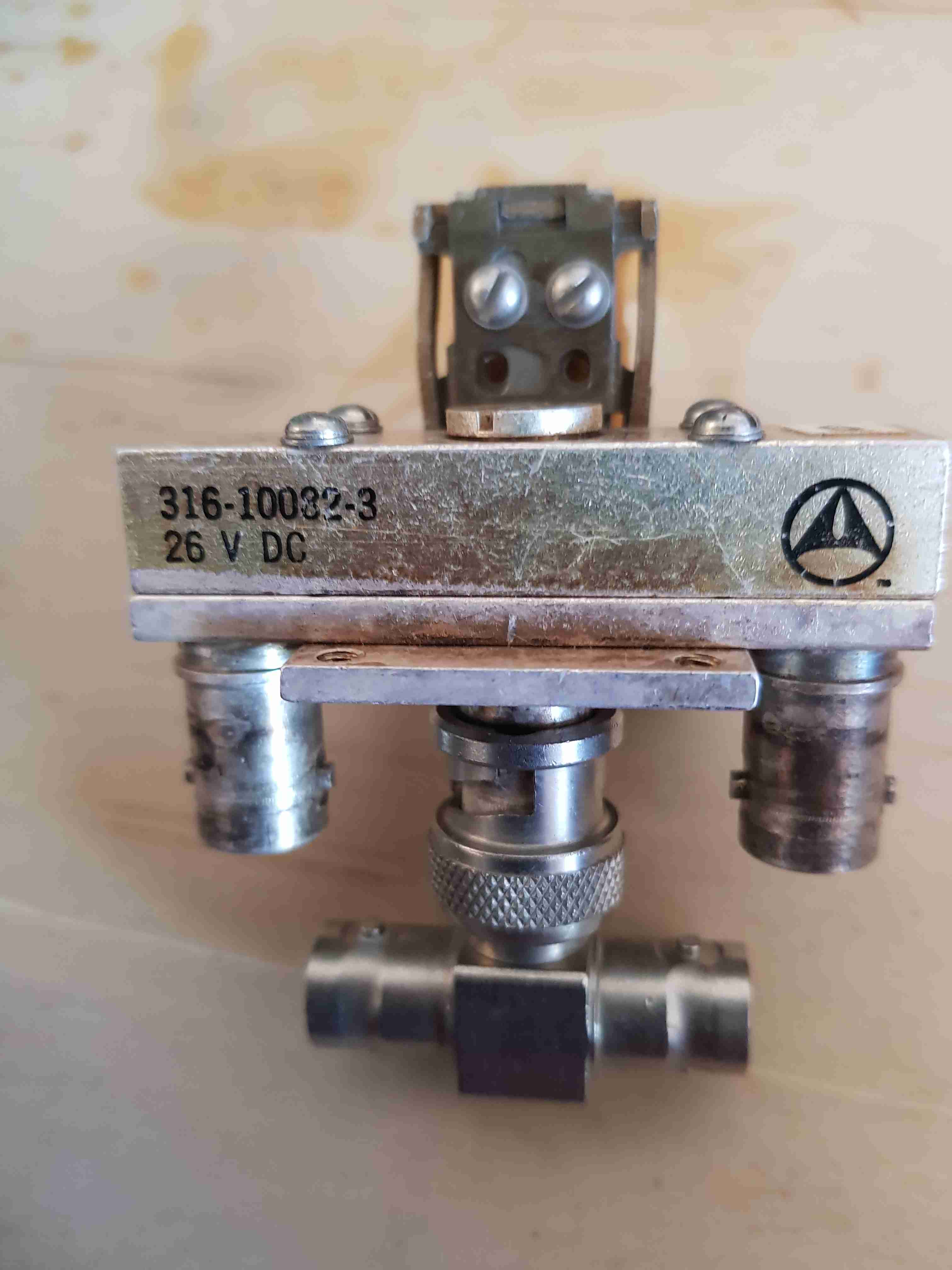

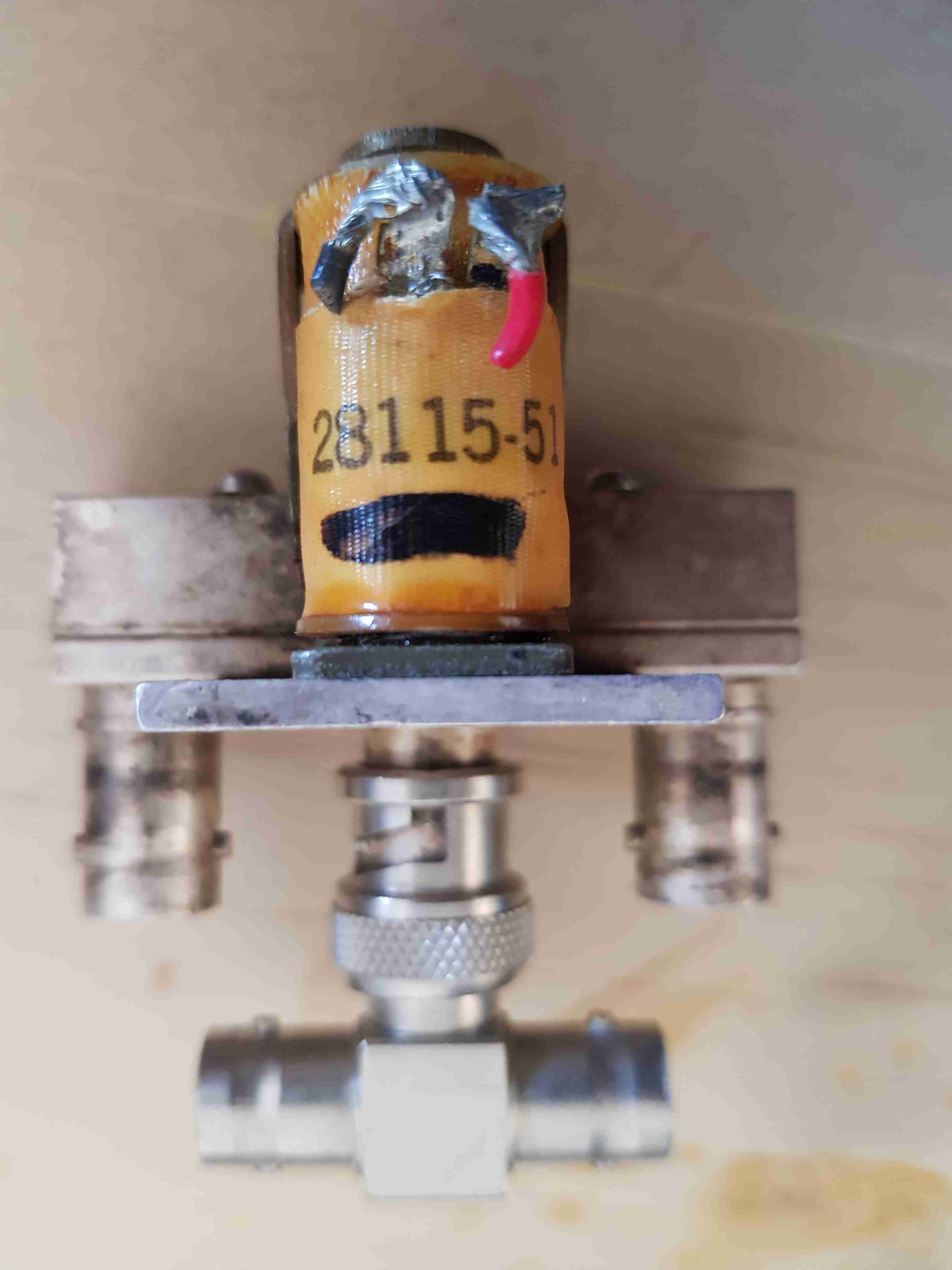

Image Image Image
